API 6D Plug Valve, 2 IN, 600 LB, ASTM A216 WCB, API 599, RF

Name: API 6D Plug Valve, 2 IN, 600 LB, ASTM A216 WCB, API 599, RF
Brand: www.vervovalve.com
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

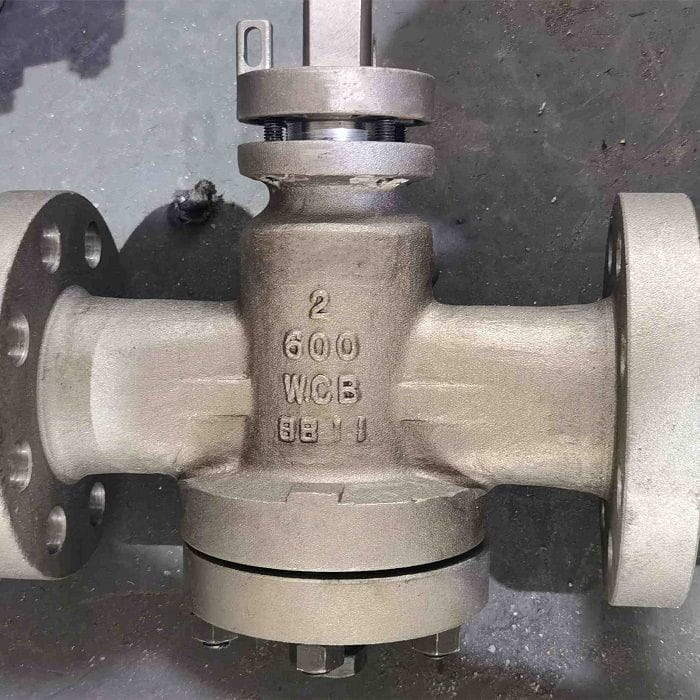

Explore our high-quality API 6D Plug Valve crafted with precision. This valve, designed for a 2-inch (DN50) size, boasts a robust build at 600 LB (PN100), constructed from ASTM A216 WCB carbon steel. Compliant with API 599 standards, it features a bolted bonnet, and lubricated design, and offers versatile operation with both gear and wrench options. The RF end ensures reliable performance in various applications.

API 599 Plug Valves Class 600 LB Plug Valves PN100 Plug Valves RF Plug Valves Carbon Steel Plug Valves ASTM A216 WCB Plug Valves 2 Inch Plug Valve DN50 Plug Valve

Detail Information

Plug valve, carbon steel, NPS 2, 600 LB, WCB, bolted bonnet, Lubricated.

Valve description:
Plug valve, carbon steel, bolted bonnet, RF.
Design: API 6D, API 599
Body: ASTM A216 WCB
Nominal size: 2 Inch.
Nominal class: 600 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear/WRENCH

Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 14 Inch (DN15 - DN350).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB (PN16 - PN160).
Working temperature: -29℃ - +400℃.

Technical parameters and characteristics

Product	Plug valve.
Nominal diameter	1/2 Inch - 14 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 1500 LB.
Material	Carbon Steel.
Design standard	API 6D, API 599
Connection end	Flange.
Test standard	API 598.
Package	Plywood
Operation	WRENCH, Gear
