API 609 Bare Stem Butterfly Valve, WCB, 16 Inch, 150 LB

Name: API 609 Bare Stem Butterfly Valve, WCB, 16 Inch, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

API 609 Bare Stem Butterfly Valve Supplier: Casting Carbon Steel ASTM A216 WCB Butterfly Valves, 10 Inch, DN250, 150 LB, PN20, Concentric Lug Type.

Request a quote

Detail Information

Casting Steel Carbon Steel A216 WCB Bare Stem Butterfly Valve

Design Standard: API 609
Body Material: ASTM A216 WCB
Nominal Diameter: 10 Inch, DN250
Pressure: Class 150 LB, PN20
End Connection: LUG
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Concentric Lug Type Butterfly Valve

VERVO butterfly valves are offered in Triple Offset, Concentric Lining design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO butterfly valves are manufactured according to API 609 Design.

PN10 & PN16 & 150 LB

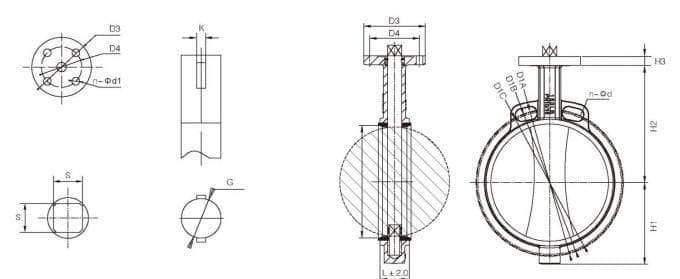

NPS	DN	L	150LB	PN16	PN10	150LB	PN16	PN10	H1	H2	H3	SxS/G	K	D3	D4	n-(Dd1
NPS	DN	L	D1A	D1B	D1C	n-①d	n-①d	n-①d	H1	H2	H3	SxS/G	K	D3	D4	n-(Dd1
1.1/2	40	42	98.4	110	110	4-19	4-18	4-18	67	133	14	9*9/12.6	3	65	50	4-7
2	50	42	120.7	125	125	4-19	4-18	4-18	67	133	14	9*9/12.6	3	65	50	4-7
2.1/2	65	45	139.7	145	145	4-19	8-18	8-18	75	137	14	9*9/12.6	3	65	50	4-7
3	80	45	152.4	160	160	4-19	8-18	8-18	82	159	14	9*9/12.6	3	65	50	4-7
4	100	52	190.5	180	180	8-19	8-18	8-18	105	171	18	11*11/15.7	5	90	70	4-10
5	125	54	215.9	210	210	8-22	8-18	8-18	118	189	22	14*14/18.9	5	90	70	4-10
6	150	54	241.3	240	240	8-22	8-22	8-22	135	209	22	14*14/18.9	5	90	70	4-10
8	200	59	298.5	295	295	8-22	12-22	8-22	165	258	24	17*17/22	5	125	102	4-12
10	250	66	362	355	350	12-26	12-26	12-22	200	299	30	22*22/28.4	8	125	102	4-12
12	300	77	413.8	410	400	12-26	12-26	12-22	230	337	30	22*22/31.6	8	150	125	4-14
14	350	77	476.3	470	460	12-29	16-26	16-22	274	350	45	22*22/31.6	8	150	125	4-14
16	400	86/102	539.8	525	515	12-29	16-30	16-26	304	405	50	27*27/33.2	10	175	140	4-18
18	450	105/114	577.9	585	565	16-32	20-30	20-26	335	409	50	27*27/38	10	175	140	4-22
20	500	130	635	650	620	20-32	20-33	20-26	368	460	60	36*36/41.1	10	210	165	4-22
24	600	151	749.3	770	725	20-33	20-36	20-30	428	516	70	36*36/50.6	16	210	165	4-22
28	700	163	863.6	840	840	28-35	24-36	24-30	520	648	80	46*46/62	18	300	254	8-18
32	800	190	977.9	950	950	28-39	24-39	24-33	580	668	80	46*46/62	18	300	254	8-18
36	900	203	1085.8	1050	1050	32-39	28-39	28-33	656	720	118	55*55/75	20	300	254	8-18
40	1000	216	1200.2	1170	1160	36-39	28-42	28-36	722	800	148	55*55/85	22	300	254	8-18

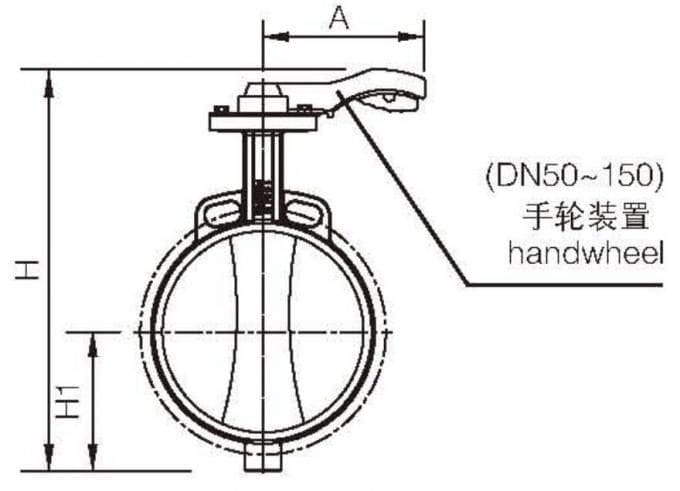

DN	40	50	65	50	80	100	125	150
H1	67	67	75	82	105	118	135	165
H	263	263	282	265	302	360	382	410
A	170	170	170	170	170	215	215	215

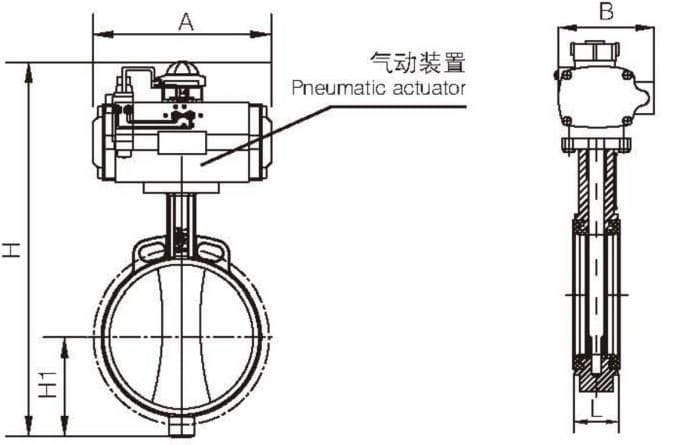

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
H1	67	67	75	82	105	118	135	165	200	230	274	304	335	368	428	520	580	656	722
H	306	306	325	345	393	415	443	613	676	747	829	859	1020	1120	1301	1470	1603	1741	1887
A	208	208	208	208	208	208	208	299	299	294	294	361	361	361	417	485	485	534	534
B	174	174	174	174	174	174	174	292	292	308	308	426	426	426	479	578	578	650	650
L	42	42	45	45	52	54	54	59	66	77	77	86	105	130	151	163	190	203	216

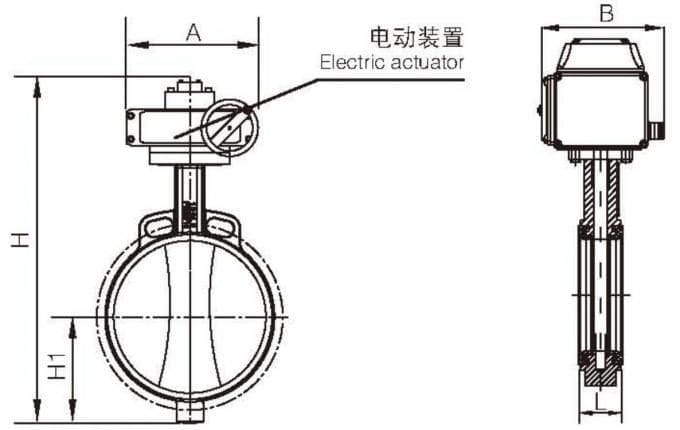

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
H1	67	67	75	82	105	118	135	165	200	230	274	304	335	368	428	520	580	656	722
H	287	287	320	360	408	462	490	599	682	781	892	994	1050	1302	1531	1668	1847	1976	2122
A	130	130	140	140	186	254	254	296	384	384	501	533	589	589	638	1330	1380	1860	1860
B	59	59	70	70	91	120	120	137	173	173	208	224	274	274	322	320	360	440	440
L	42	42	45	45	52	54	54	59	66	77	77	86	105	130	151	163	190	203	216

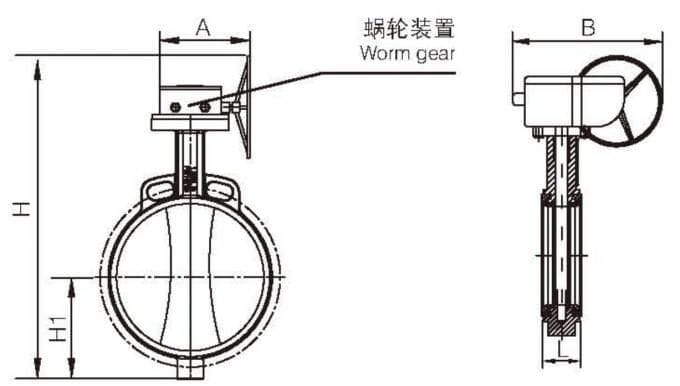

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
H1	67	67	75	82	105	118	135	165	200	230	274	304	335	368	428	520	580	656	722
H	330	330	349	400	448	511	539	628	691	782	864	938	1325	1425	1606	1775	1908	2104	2250
A	165	165	212	212	212	259	259	259	259	259	284	284	644	644	644	803	803	887	1015
B	140	140	154	154	154	186	186	186	186	186	193	193	495	495	495	671	671	693	693
L	42	42	45	45	52	55	55	60	66	76	76	86	105	130	151	163	188	203	216
