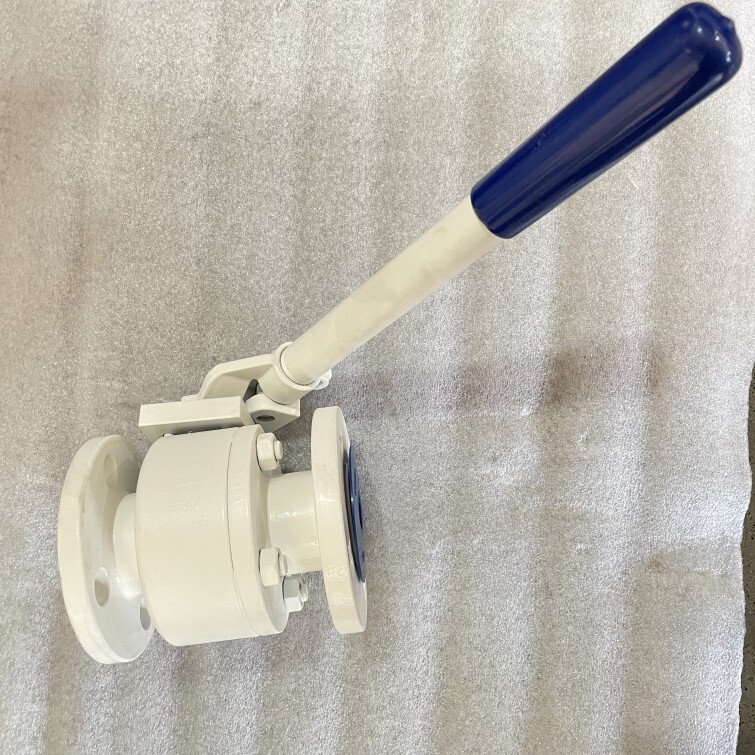

Bolted Bonnet Ball Valves, API 608, 2 Inch, Class 150 LB, RF.
Valve Description:
Ball Valve, Carbon Steel, Bolted Bonnet, Two-pieces, Lever, Soft Seated.
Design Standard: API 608
Body Material: ASTM A105N
Nominal Size: 2 Inch
Nominal Class: Class 150 LB
End Connection: RF
Operation: Lever
Face to Face: ASME B16.10
Test and Inspection: API 598
Product Range:
Body Material: Carbon Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: BW, Flange, SW
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420)
Working temperature: -29°C - +429°C
Product Item | Ball Valve |
Nominal Diameter | 1/2 Inch - 2 Inch |
Design Temperature | Down to -29°C |
Design Pressure | Class 150 LB - 2500 LB |
Material | Carbon Steel |
Design Standard | API 608 |
Face to Face | ASME B16.10 |
Operation | Lever |
Connection End | BW, Flange, SW |
Test Standard | API 598 |
Package | Plywood |
Application | The oil and gas industry |
