Alloy Steel ASTM A182 F11 Globe Valve, 3/4 Inch, 800 LB

Name: Alloy Steel Globe Valve
Body material: Alloy Steel ASTM A182 F11
Standard: API 602, ASME B16.34
Size: 3/4 Inch, DN20
Pressure: Class 800 LB, CL800, PN150
Connection: Socket Weld
Seal material: Gasket
Media: Oli, Gas, Water
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature

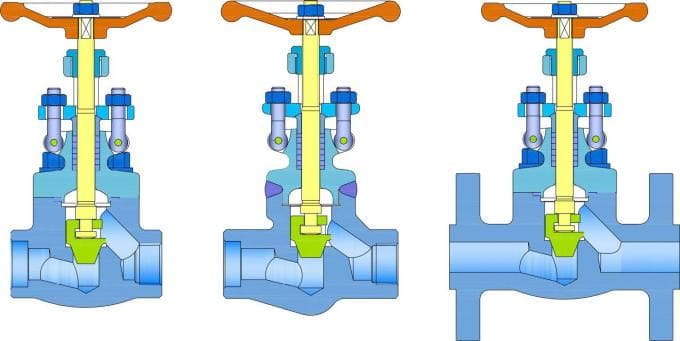

Feature: Outside Screw & Yoke (OS & Y), Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

Product Range

Sizes: NPS 1/4 - 4 Inch
Pressure: Class 150-2500 LB
Material: Forged Steel ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, Alloy 20, Monel, Inconel, Hastelloy
Design & manufacture: API 602, ASME B16.34, BS 5352, GOST, JIS, DIN, ISO 9001, ISO 14001, ISO 18001, TS, CE
End Connection: ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection: API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Connection: SW, NPT, RF, or BW




CL800	Bolt Bonnet (BB), Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS & Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	79	92	111	120	152	172	220
Handwheel Diameter	W	100	100	125	160	160	180	200
Height	H	170	172	207	228	270	320	356
Flow Port Diameter	d	10.5	13.5	17	22	28	34	44
Weight (Kg)	B.B	2.2	2.4	4.1	5.7	7.6	12.2	21
	W.B	1.9	2.1	3.9	5.5	7.4	11.6	19.7
CL900~CL1500	Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	92	111	120	152	172	220
Handwheel Diameter	W	100	125	160	160	180	200
Height	H	172	207	228	270	320	387
Flow Port Diameter	d	10.5	13.5	17	22	28	34
Weight (Kg)	B.B	4.1	5.6	6.7	7.6	12.2	21
	W.B	3.8	5.4	6.5	7.4	12	20.2
CL2500	Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS & Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L		120	120	152	172	220	220
Handwheel Diameter	W		160	160	160	180	200	200
Height	H		228	228	270	320	387	396
Flow Port Diameter	d		10.5	13.5	17	22	28	34
Weight (Kg)	W.B		6.7	6.5	7.6	12.2	21	20.7

The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
