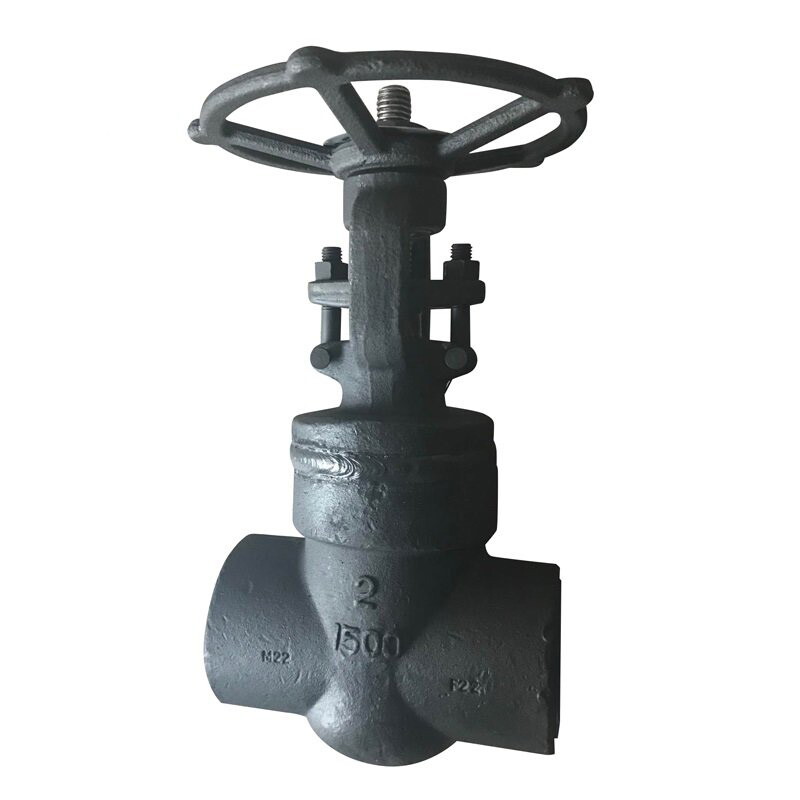

Seal Bonnet Gate Valve, ASTM A105N, BS 5352, 2 Inch, 1500 LB
Model Number: VF-240220-FSGV-02
Key Specifications / Features
Manufacturer of seal bonnet gate valves in compliance with BS 5352 and ANSI B16.34 standards. Available in 2-inch size, Class 1500 LB rating, reduce port design, ASTM A105N material. Equipped with handwheel operation, raise flanged end. Also offered in DN50, PN250 specifications.
Detail Information
Standard: API 602, BS 5352, ANSI B16.34
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: RF
Port: Reduce Port
Operating: Hand Wheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +425ºC
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: RF
Port: Reduce Port
Operating: Hand Wheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +425ºC
