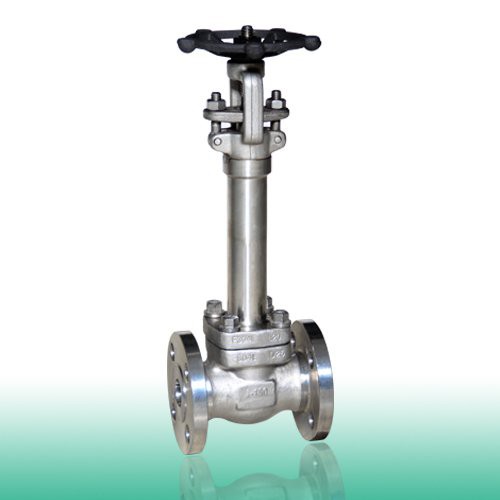

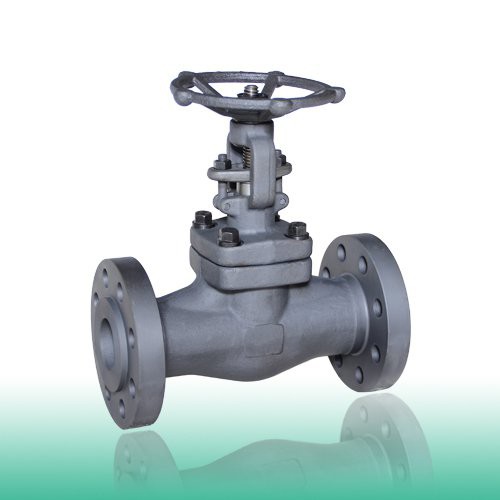

ISO 15761 Flanged Forged Gate Valve, 150-2500 LB, 1/2-4 Inch

Name: ISO 15761 Flanged Forged Gate Valve, 150-2500 LB, 1/2-4 Inch
SKU: YV-GTV-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

ISO 15761 Flanged Forged Gate Valve Manufacturer: ISO 15761 Flanged Forged Gate Valve, 150-2500 LB, 1/2-4 Inch, ASTM A105, API 602, ASME B16.34.

Request a quote

Detail Information

ISO 15761 Flanged Forged Gate Valve
Design Specifications:
Body Material: ASTM A105.
Size: From NPS 1/2 to NPS 4 Inch.
Class: From ASME 150 to ASME 2500LB.
Design: API 602, ISO 15761, ASME B16.34.
Wall Thickness: API 602, ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):

Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
