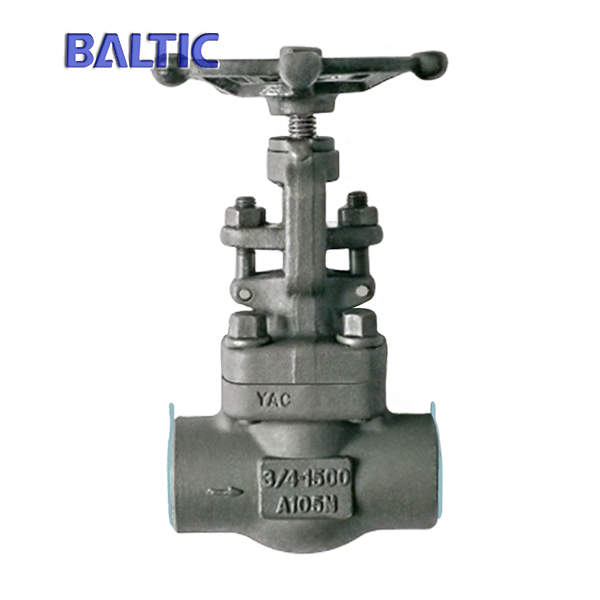

DIN 3356 Globe Valve, ASTM A105, 3/4 Inch, Class 1500 LB, SW

Name: DIN 3356 Globe Valve, ASTM A105, 3/4 Inch, Class 1500 LB, SW
SKU: VF-231213-GLV-15
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Are you looking for a high-performance fluid control solution? Our DIN 3356 Globe Valve is the answer. Manufactured with precision using ASTM A105 steel, this valve is designed for reliability and longevity. With a versatile 3/4-inch size, it excels in Class 1500 LB applications. The NO.5 Trim ensures optimal fluid control, while the Hand Wheel Operation provides ease of use. The NPT, NPT*SW SW Ends offer flexible connectivity options.

Request a quote

Detail Information

Standard: DIN 3356
Material: ASTM A105
Trim: NO.5
Size: 3/4 Inch, DN20
Class Rate: 1500 LB, PN250
Ends: NPT, NPT * SW SW
Operating: Hand Wheel
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
Spiral wound gasket
Integral backseat
Integral body flanges
Marking MSS SP25
Outside Screw and Yoke (OS & Y)
Loose disc stem assembly
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
