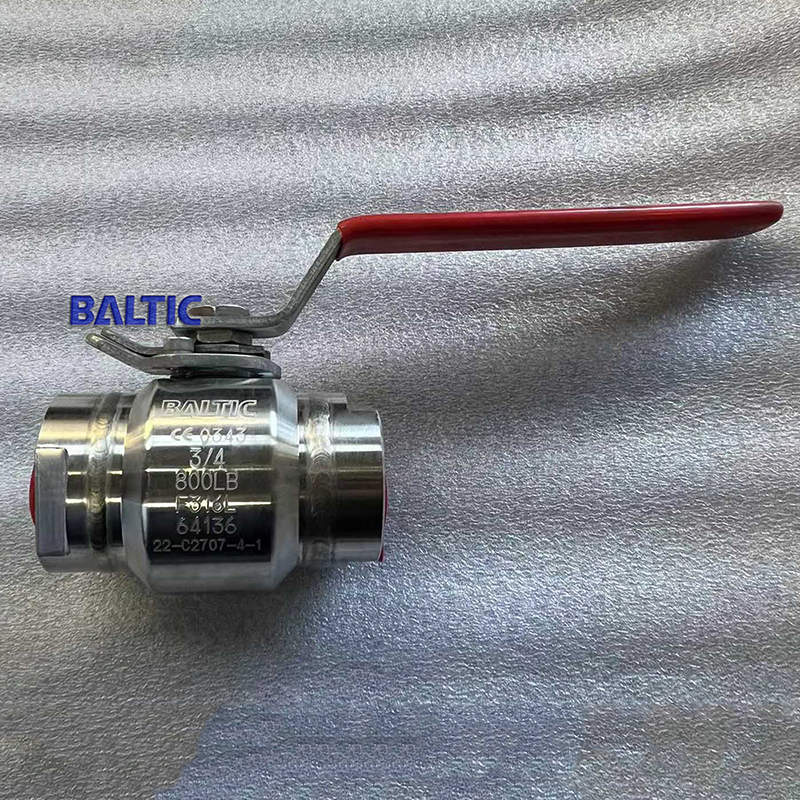

ASTM A182 F316 Ball Valve, Top Entry, API 6D, 3/4 IN, 800 LB
Model Number: VF-231214-BV-09
Key Specifications / Features
Our top-tier Top Entry Ball Valve, meticulously crafted in our cutting-edge factory, stands out as a pinnacle of quality and reliability. This valve, constructed from premium ASTM A182 F316 material, aligns seamlessly with API 6D standards, ensuring exceptional performance.
Detail Information
Standard: API 6D
Material: F316
Size: 3/4 Inch, DN20
Class Rate: 800 LB, PN130
Ends: NPT, NPT*SW, SW
Operating: Hand Wheel
Wall Thickness: ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10-API 6D.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1- ASME B16.11.
Butt Welding Ends: ASME B16.25
Pressure Testing: API 598
More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
