ASTM A105 Check Valve, ASME B16.34, 1/2-2 Inch, 1500-2500 LB
Model Number: VF-231214-CV-03
Key Specifications / Features
Experience excellence with our Check Valve series, meticulously designed to meet and exceed the rigorous standards of ASME B16.34 and BS 5352. Crafted with precision, these valves are available in sizes ranging from 1/2 to 2 inches, catering to DN15 to DN50 specifications. With Class ratings spanning from 150 to 600 LB, these valves are constructed from high-quality ASTM A105 material, ensuring both durability and outstanding performance across various applications.
Detail Information
Design Construction:
Design: ASME B16.34, BS 5352
Materials: ASTM A105
Size: 1/2 Inch, 3/4 Inch, 1, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 1500 LB, 2500 LB, PN250, PN420
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
Marking MSS SP25
Integral body flanges
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Spring available on request for Piston and Ball Check Valve
Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C
More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

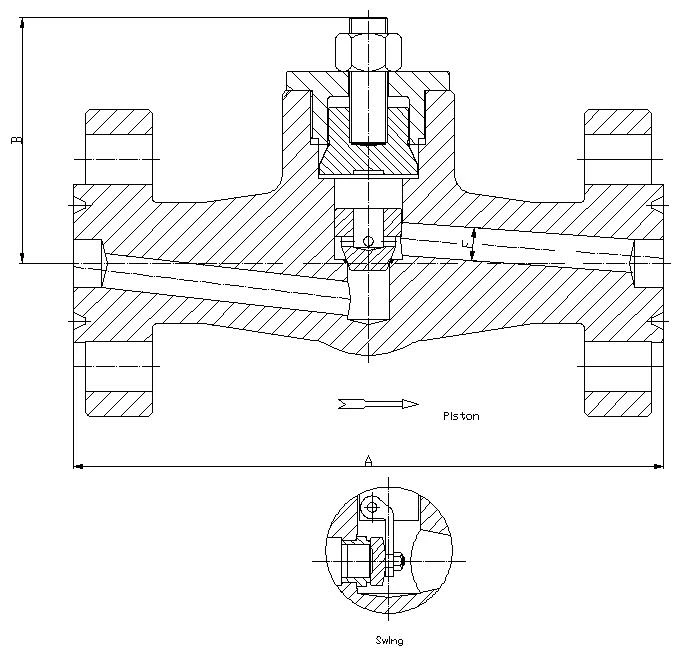

| 2500 LB |
NPS | （in) | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | |
| D | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| L(RF) |
900; Class 1500 | 216 | 229 | 254 | 279 | 305 | 368 | |
| 2000; Class 2500 | 264 | 273 | 308 | 349 | 384 | 451 | ||
| PN16.0 MPa | 170 | 190 | 210 | 230 | 260 | 300 | ||
| H |
900; Class 1500 | 117.5 | 117.5 | 117.5 | 149 | 149 | 195 | |
| 2000; Class 2500 | 125 | 125 | 125 | 166 | 166 | 210 | ||
| PN16.0 MPa | 117.5 | 117.5 | 117.5 | 149 | 149 | 195 | ||
| kg |
900; Class 1500 | 10.5 | 11.9 | 13.9 | 26.9 | 25.1 | 32.0 | |
| 2000; Class 2500 | 12.6 | 14.9 | 16.5 | 28.0 | 27.6 | 34.5 | ||
| PN16.0 MPa | 9.8 | 10.5 | 12.0 | 24.4 | 24.8 | 30.1 | ||
