ASME B16.34 Check Valve, ASTM A105N, 1/4-2 Inch, 800-1500 LB
Model Number: VF-231214-CV-01
Key Specifications / Features
Discover the reliability and precision of our ASTM A105N Check Valve – a top-tier solution adhering to industry standards. Engineered in compliance with ASME B16.34 and BS 5352, this check valve is designed for optimal performance in applications ranging from 1/4 to 2 inches. With Class ratings spanning 800 to 1500 LB, and suitable for DN6 to DN50 specifications, it offers versatility across diverse operational requirements. Featuring SW, BW, and Screwed Ends, our check valve ensures ease of installation in various systems.
Detail Information
Design Construction:
Design: ASME B16.34, BS 5352
Testing: API 598
Materials: ASTM A105N
Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN6, DN10, DN15, DN20, DN25, DN32, DN40, DN50
Class: 800 LB, 900 LB, 1500 LB, PN130, PN150, PN250
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spring on request only
Ratings:
- carbon steel class 800 2000 psig @ 100°F 138 bar + 38°C
- carbon steel class 1690 4225 psig @ 100°F 291 bar + 38°C
More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

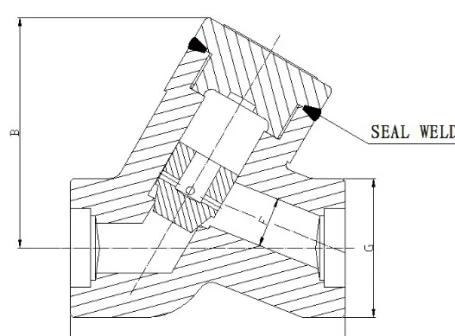

| 800-1500 LB | NPS | (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 5 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| F | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| A | class800 | 98 | 98 | 98 | 98 | 120 | 130 | 140 | 170 | |
| class1500 | 102 | 102 | 102 | 102 | 130 | 150 | 190 | 200 | ||
| H | class800 | 84 | 84 | 84 | 84 | 102 | 114 | 114 | 145 | |
| class1500 | 90 | 90 | 90 | 101 | 125 | 132 | 142 | 203 | ||
| kg | class800 | 3.0 | 2.8 | 2.7 | 3.7 | 6.5 | 9.0 | 10.1 | 11.0 | |
| class1500 | 3.2 | 3.1 | 3.0 | 4.1 | 7.2 | 11.0 | 12.0 | 13.8 | ||
