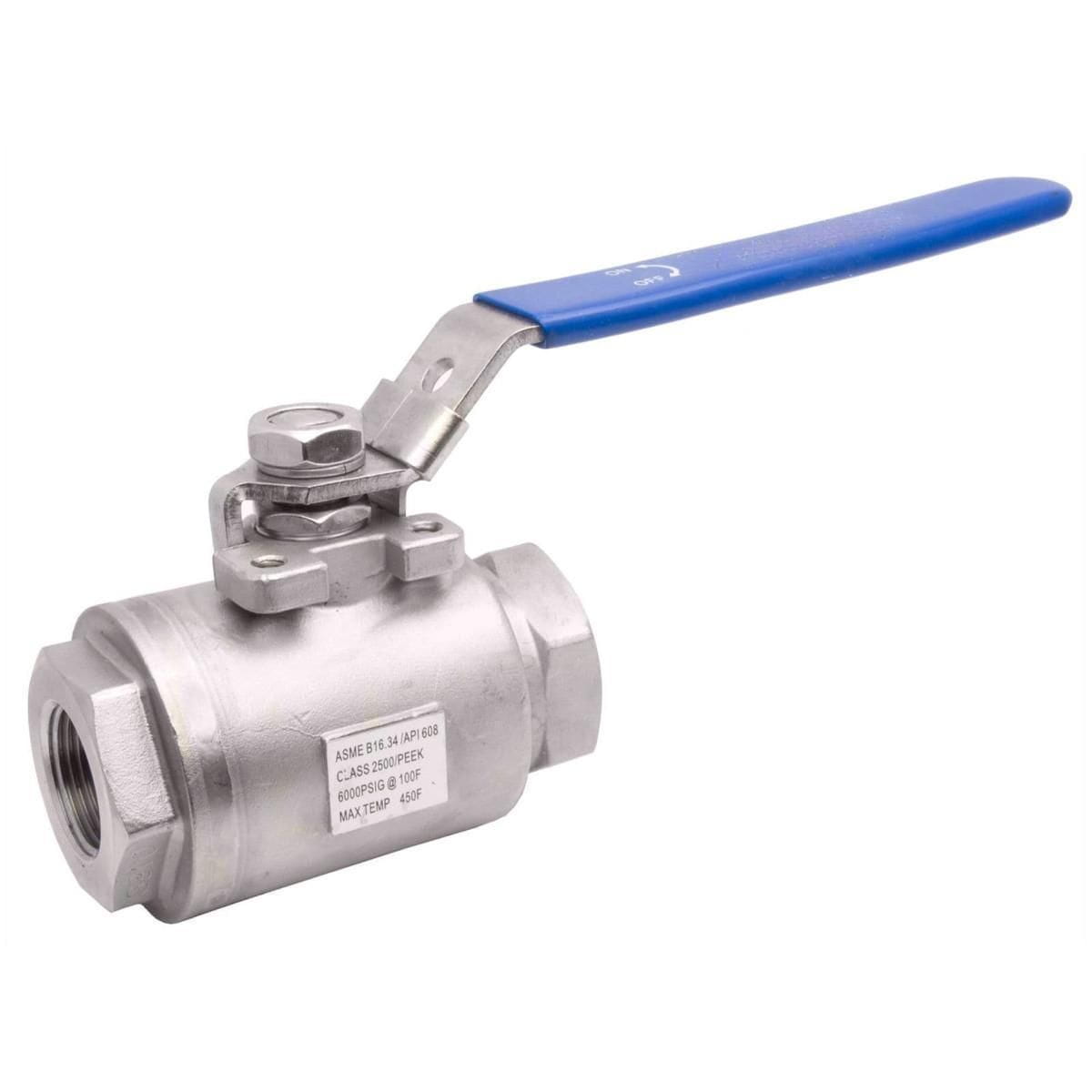

2 Piece Forged Stainless Steel Ball Valve, 6000 WOG PSI CWP

Name: 2 Piece Forged Stainless Steel Ball Valve, 6000 WOG PSI CWP
SKU: VS-230901-FSBV-SS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Feature: High Pressure 6000 PSI, 2-Piece Body, ASTM A351 CF8M, Threaded, Blowout proof Ball Valve stem, Locking Device Lever, Anti-Static Device, Mounting Pad.

Request a quote

Detail Information

On this page

The valve body of the 6000 psi internal thread ball valve is cast by the silica gel process, resulting in a well-designed structure and pleasing form. The seat of the 6000 psi 2 PC threaded ball valve employs an elastic sealing arrangement, ensuring dependable seals and effortless operation. The valve stem features a bottom-mounted structure with an inverted seal, preventing any forceful ejection during instances of abnormal pressure within the valve chamber. This 6000 psi forged stainless steel valve is suitable for working within a pressure range of 1.0 MPa to 12.5 MPa, with operational temperatures spanning from -29°C to 18°C (utilizing a reinforced polytetrafluoroethylene sealing ring) or from -29°C to 300°C (employing an aligned polystyrene sealing ring). The 6000 psi internal thread forged steel ball valve finds its utility in cutting off or facilitating the flow of media within pipelines. With a diverse selection of materials, it can accommodate an array of mediums, including water, steam, oil, nitric acid, and acetic acid.

Structural Features

Item：Forged Stainless Steel Ball Valve - High Pressure 6000 PSI
Feature: 2-Piece Body, Threaded, Blowout proof Ball Valve stem, Locking Device Lever, Anti-Static Ball Valve Device, Mounting Pad.
construction: Seal Weld
Standard: NACE MR-01-75
Size: ¼ - 2 Inch, Full Port: ¼ - 1 ½ Inch, Reduced Port: 2 Inch
Pressure Rating: 6000 PSI CWP
Materials Body: ASTM A351 CF8M, Forged Stainless Steel
Ball: SS 316
Test: API 598

Materials of main parts

No	Part	Matarial
1	BODY	ASTM A351 CF8M
2	SEAT	PEEK
3	BALL	SS 316
4	WASHER	SS 316
5	BONNET	ASTM A351 CF8M
6	GASKET	SS 304
7	WASHER	GRAPHITE
8	STEM	SS 316
9	PACKING	RPTFE
10	GLAND	SS 304
11	HANDLE	SS 201 Lever + PVC
12	NUT	Stainless steel DIN 934 A2-70

Dimensions (mm)

Size	Port	Pressure	L (mm)
1/4 IN	FP	6000 PSI	80
3/8 IN	FP	6000 PSI	80
1/2 IN	FP	6000 PSI	102
3/4 IN	FP	6000 PSI	108
1 IN	FP	6000 PSI	121
1-1/4 IN	FP	6000 PSI	121
1-1/2 IN	FP	6000 PSI	132
2 IN	RP	6000 PSI	156
