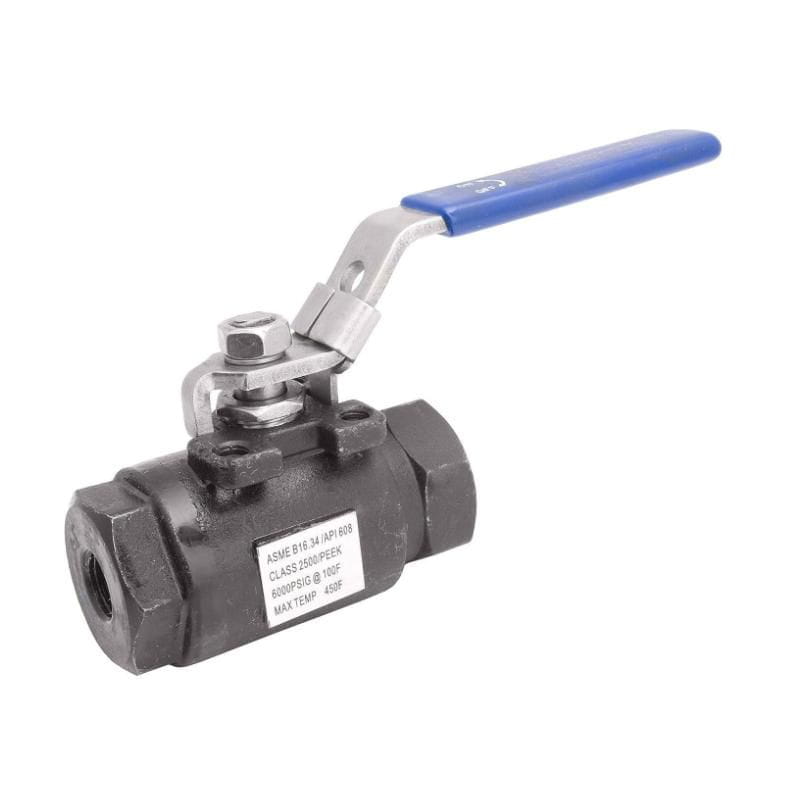

2 Pcs Forged Carbon Steel Ball Valve, 6000 WOG PSI CWP

Name: 2 Pcs Forged Carbon Steel Ball Valve, 6000 WOG PSI CWP
SKU: VS-230901-FSBV-CS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Feature: High Pressure 6000 PSI, 2-Piece Body, ASTM A216 WCB, Mounting Pad, Blowout proof stem, Anti-Static Device, Threaded, Lever Locking Device.

Request a quote

Detail Information

On this page

This 6000 psi internal thread ball valve is crafted using a silica gel casting process, resulting in an attractive design. The valve seat uses an elastic sealing method, ensuring reliable seals and easy operation. The valve stem has a bottom-mounted design with a reverse seal to prevent forceful ejection during abnormal pressure situations inside the valve chamber. This 6000 psi forged carbon steel valve is suitable for operating within a pressure range of 1.0 MPa to 12.5 MPa, with operational temperatures ranging from -29°C to 18°C (using a reinforced polytetrafluoroethylene sealing ring) or from -29°C to 300°C (utilizing an aligned polystyrene sealing ring). It is designed for controlling or facilitating the flow of various media within pipelines, accommodating materials such as water, steam, oil, nitric acid, and acetic acid.

Structural Features

Item：Forged Carbon Steel Ball Valve - High Pressure 6000 PSI
Feature: 2-Piece Body, Mounting Pad, Blowout proof stem, Anti-Static Device, Threaded, Lever Locking Device.
Standard: NACE MR-01-75
construction: Seal Weld
Materials Body: ASTM A216 WCB, Forged Carbon Steel
Ball: ASTM A182 F316
Test: API 598
Pressure Rating: 6000 PSI CWP
Size: ¼ - 2 Inch, Full Bore: ¼ - 1 ½ Inch, Reduced Port: 2 Inch

Materials of main parts

No	Part	Matarial
1	BODY	ASTM A216 WCB
2	SEAT	PEEK
3	BALL	SS 316
4	WASHER	SS 316
5	BONNET	ASTM A216 WCB
6	GASKET	SS 304
7	WASHER	GRAPHITE
8	STEM	SS 316
9	PACKING	RPTFE
10	GLAND	SS 304
11	HANDLE	SS 201 Lever + PVC
12	Hexagon NUT	Stainless steel DIN 934 A2-70

Dimensions (mm)

Size	Port	Pressure	L (mm)
1/4 IN	FP	6000 PSI	80
3/8 IN	FP	6000 PSI	80
1/2 IN	FP	6000 PSI	102
3/4 IN	FP	6000 PSI	108
1 IN	FP	6000 PSI	121
1-1/4 IN	FP	6000 PSI	121
1-1/2 IN	FP	6000 PSI	132
2 IN	RP	6000 PSI	156
