Cast Floating Ball Valves: API 608, API 6D, BS 5351

Cast Floating Ball Valves: API 608, API 6D, BS 5351

Model Number: FBV CS API 01

Key Specifications / Features

Cast Steel Floating Ball Valves: API 608, API 6D, BS 5351, Two-Piece Body, Full or Reduced Bore, Class 150 - 300, 1/2 - 10 Inch, or as required.

BS 5351 Ball Valve Two-Piece Ball Valve Class 150 LB Ball Valve Floating Ball Valve 10 Inch Ball Valve Class 300 LB Ball Valve Reduced Bore Ball Valve Full Bore Ball Valve 1/2 Inch Ball Valve Cast Steel Ball Valve
Share:

Detail Information

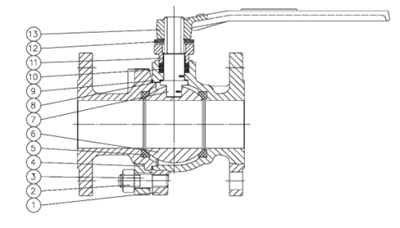

Drawing: Cast Floating Ball Valves, API 608, API 6D, BS 5351
Valve Type: Cast Floating Ball Valve.
Valve Size: 1/2”-10”.
Pressure Rating: Class 150 – 300.

Features:
Two-piece Body, Floating Ball,
Full or reduced bore, Blow-out Proof Stem,
Fire Safe and Anti static, Low Emission.

Standards:
Design & Manufacture: ASME B16.34, BS5351, ISO 17292
Face to Face(End to End) ANSI B 16.10
End Flange ANSI B16.5
Butt welded end ANSI B16.25
Test API 598
Fire Safe Test API 607, API6 FA
Special NACE MR-01-75

 Parts and material list
Part No Parts Name Material
WCB/ENP WCB/304 WCB/316 CF8/304 CF8M/316
1 Body ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
10 Packing PTFE PTFE PTFE PTFE PTFE
11 Gland Flange ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
12 Stop Collar Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel
13 Lever Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel
8 Thrust Washer PTFE PTFE PTFE PTFE PTFE
7 Stem ASTM A182 F6a ASTM A182 F304 ASTM A182 F316 ASTM A182 F304 ASTM A182 F316
6 Ball ASTM A105/ENP ASTM A182 F304 ASTM A182 F316 ASTM A182 F304 ASTM A182 F316
5 Seat Reinforced PTFE Reinforced PTFE Reinforced PTFE Reinforced PTFE Reinforced PTFE
9 Gasket PTFE PTFE PTFE PTFE PTFE
2 Body Nut ASTM A194 2H ASTM A194 2H ASTM A194 2H ASTM A194 8 ASTM A194 8M
3 Body bolting ASTM A193 B7 ASTM A193 B7 ASTM A193 B7 ASTM A193 B8 ASTM A193 B8M
4 Closure ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
Note: The chart above only lists out some common composition of steel ball valve parts, we may provide other different parts material composition according to the customer’s request or the actual valve working condition.
