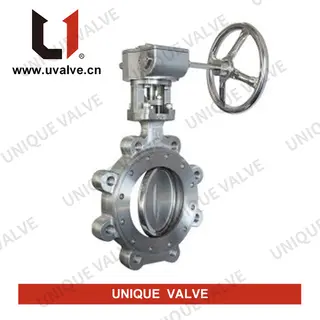

Welded Butterfly Valve
Key Specifications / Features
Welded Butterfly Valve Manufacturer in China: Welded Butterfly Valve, PN10, PN16, PN25, PN40, CL150, CL300, DN50-DN3200, API 609, AWWA C504, BS EN 593.
Request a quote
Detail Information
Pressure: PN10, PN16, PN25, PN40, CL150, CL300.
Size: DN50-DN3200.
Medium: Water, Steam, Oil, Low-corrosive liquid etc.
Temp.: Carbon Steel : -29℃ - 425℃, Stainless Steel: -40℃ - 600℃.
Body Materials: ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCB, QT450-10, QT500-7, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF8.
Disc Materials: ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCB, QT450-10, QT500-7, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF8.
Stem Materials: 2Cr13, SS 304, SS 316, SS 304L, SS 316L.
Seat Materials: SS 304, SS 316, Graphite, Asbetos, PTFE, EPDM, NBR, FKM.
Designed: API 609, AWWA C504, BS EN 593.
Face to Face: API 609,AWWA C504, BS 2080, ISO 5752.
Flange End: ASME B16.5, ASME B16.47, BS EN 1092, ISO 7005.
Inspection and Test: API 598, BS EN 12266, ISO 5211.
Operating: Worm gear hand wheel, Electric actuator, Pneumatic actuator, Hydraulic actuator.
Coating: The dutch color, Electrostatic powder coating epoxy resin.
Features and benefits:
Metal to metal sealing or rubber sealing, Triple eccentric quarter–turn design, Toque seated, Bi-directional tight shut off, Zero leakage.
Applications: Water, sea water, Power, Acid, Caustic, Chloride, Oil and so on.
Size: DN50-DN3200.
Medium: Water, Steam, Oil, Low-corrosive liquid etc.
Temp.: Carbon Steel : -29℃ - 425℃, Stainless Steel: -40℃ - 600℃.
Body Materials: ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCB, QT450-10, QT500-7, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF8.
Disc Materials: ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCB, QT450-10, QT500-7, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF8.
Stem Materials: 2Cr13, SS 304, SS 316, SS 304L, SS 316L.
Seat Materials: SS 304, SS 316, Graphite, Asbetos, PTFE, EPDM, NBR, FKM.
Designed: API 609, AWWA C504, BS EN 593.
Face to Face: API 609,AWWA C504, BS 2080, ISO 5752.
Flange End: ASME B16.5, ASME B16.47, BS EN 1092, ISO 7005.
Inspection and Test: API 598, BS EN 12266, ISO 5211.
Operating: Worm gear hand wheel, Electric actuator, Pneumatic actuator, Hydraulic actuator.
Coating: The dutch color, Electrostatic powder coating epoxy resin.
Features and benefits:
Metal to metal sealing or rubber sealing, Triple eccentric quarter–turn design, Toque seated, Bi-directional tight shut off, Zero leakage.
Applications: Water, sea water, Power, Acid, Caustic, Chloride, Oil and so on.
