Wafer Ball Valve
Key Specifications / Features
Wafer Ball Valve Fabricator in China: Wafer Ball Valve with ISO 5211 Mounting Pad, ASME B16.34, API 608, JIS 10K, Class 150-300 LB, PN16-PN40.
Request a quote
Detail Information
Wafer Type Ball Valve, Italian Type Ball Valve.

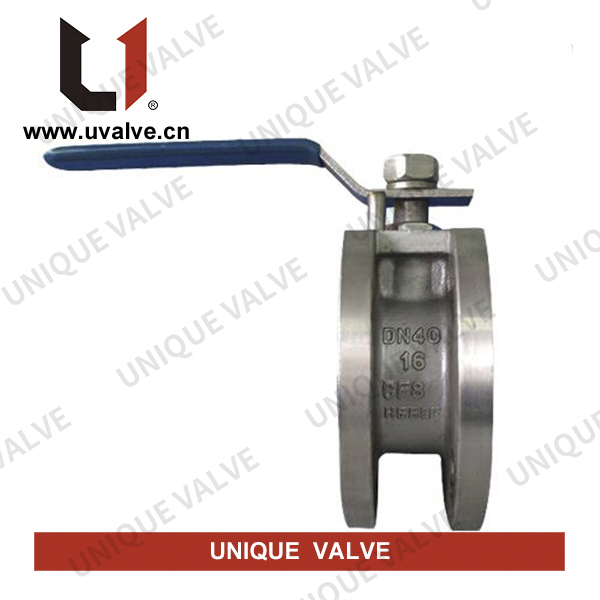

1 PC Stainless Steel Wafer Type Ball Valve with ISO 5211 Mounting Pad (Q41F).
Body Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF3M, ASTM A216 WCB, ASTM A105, etc.
Design standard: ASME B16.34, API 608.
Wall Thickness standard: EN 12516-1.
Flange End: ASME B16.5, CLASS 150 LB, 300 LB, DIN 2653, PN10-PN40, JIS B2238, 10K, 20K.
Inspection & Testing: API 598, EN 12266.
Operating, Test Conditions:
Temperature Range: -20℃ to 190℃.
Working Pressure: 10K, 150 LB-300 LB, PN16-PN40.
Working Medium: Water, Oil, Gas, Acid, etc.
Flange End: ASME B16.5, CLASS 150 LB, 300LB, DIN, PN10-40, JIS B2220, JIS 10K, JIS 20K.
Design: ANSI, ASME B16.34.
Inspection & Testing: API 598, BS, EN 12266.
Features and Benefits: Blow-out Proof Stem, Anti-Static Device for Ball-Stem-Body
Pressure Balance Hole in Ball Slot, 2 Belleville Washer to Self-adjust Packing, ISO 5211 Direct Mounting Pad for Easy Automation, Locking Device Spring Handle, New Design, Fire-Safe Design Available.
1 PC Stainless Steel Wafer Type Ball Valve with ISO 5211 Mounting Pad (Q41F).
Body Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF3M, ASTM A216 WCB, ASTM A105, etc.
Design standard: ASME B16.34, API 608.
Wall Thickness standard: EN 12516-1.
Flange End: ASME B16.5, CLASS 150 LB, 300 LB, DIN 2653, PN10-PN40, JIS B2238, 10K, 20K.
Inspection & Testing: API 598, EN 12266.
Operating, Test Conditions:
Temperature Range: -20℃ to 190℃.
Working Pressure: 10K, 150 LB-300 LB, PN16-PN40.
Working Medium: Water, Oil, Gas, Acid, etc.
Flange End: ASME B16.5, CLASS 150 LB, 300LB, DIN, PN10-40, JIS B2220, JIS 10K, JIS 20K.
Design: ANSI, ASME B16.34.
Inspection & Testing: API 598, BS, EN 12266.
Features and Benefits: Blow-out Proof Stem, Anti-Static Device for Ball-Stem-Body
Pressure Balance Hole in Ball Slot, 2 Belleville Washer to Self-adjust Packing, ISO 5211 Direct Mounting Pad for Easy Automation, Locking Device Spring Handle, New Design, Fire-Safe Design Available.
