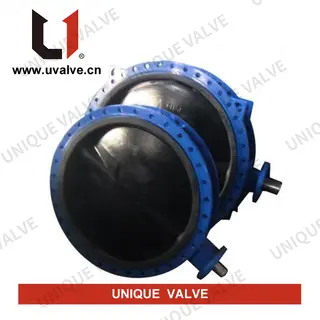

Rubber Seat Butterfly Valve
Key Specifications / Features
Rubber Seat Butterfly Valve Maker in China: Rubber Seat Butterfly Valve, DN50-DN1200, PN10, PN16, 150, 200 PSI, Cast Iron, DI, WCB, ALB, CF8, CF8M.
Request a quote
Detail Information
Size: DN50 - DN1200.
Face to Face: API 609, BS 5155, DIN 3202, ISO 5752.
Top Flange: ISO 5211.
Flanged End Dimension: DIN PN10, 16, 25, ANSI B16.5, BS 4504, ISO PN10, PN16, BS 10 Table D, BS 10 Table E.
Normal Pressure: PN10, PN16 (150, 200 PSI).
Body: Cast Iron, Ductile Iron, ASTM A216 WCB, ALB, ASTM A351 CF8, ASTM A351 CF8M.
Disc: DI, ALB, ASTM A351 CF8M, ASTM A351 CF8, Hastelloy Alloy, Monel.
Stem: SS 416, SS 304, SS 316, SS 431.
Seat: Hypalon, EPDM, Neoprene, NBR, EPDM, Viton, Silicon, PTFE.
Suitable Temperature: -45℃ to 150℃.
Suitable media include water, sewage, air, foodstuff, sea water, gas, oils, acids, alkalis, etc.
They are suitable for handles, gear operators, electric and pneumatic control actuators.
Design characters:
The rubber seat can be replaced.
Correcting holes are made on flange according to standard, easy correcting during the installation.
Through-out bolt or one-side bolt used. Easy replacing and maintenance.
Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.
Face to Face: API 609, BS 5155, DIN 3202, ISO 5752.
Top Flange: ISO 5211.
Flanged End Dimension: DIN PN10, 16, 25, ANSI B16.5, BS 4504, ISO PN10, PN16, BS 10 Table D, BS 10 Table E.
Normal Pressure: PN10, PN16 (150, 200 PSI).
Body: Cast Iron, Ductile Iron, ASTM A216 WCB, ALB, ASTM A351 CF8, ASTM A351 CF8M.
Disc: DI, ALB, ASTM A351 CF8M, ASTM A351 CF8, Hastelloy Alloy, Monel.
Stem: SS 416, SS 304, SS 316, SS 431.
Seat: Hypalon, EPDM, Neoprene, NBR, EPDM, Viton, Silicon, PTFE.
Suitable Temperature: -45℃ to 150℃.
Suitable media include water, sewage, air, foodstuff, sea water, gas, oils, acids, alkalis, etc.
They are suitable for handles, gear operators, electric and pneumatic control actuators.
Design characters:
The rubber seat can be replaced.
Correcting holes are made on flange according to standard, easy correcting during the installation.
Through-out bolt or one-side bolt used. Easy replacing and maintenance.
Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.
