PTFE Seat Stainless Steel Ball Valve
Key Specifications / Features
PTFE Seat Stainless Steel Ball Valve Fabricator in China: PTFE Seat Stainless Steel Ball Valve, Full Port, Class 150 LB, Flanged Ends, FF ANSI B16.10.
Request a quote
Detail Information

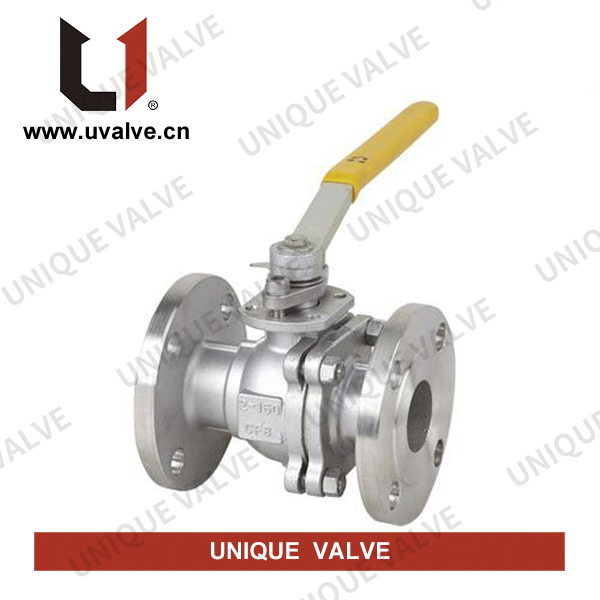

2-Piece Flanged 150 LB Stainless Steel Ball Valves with PTFE Seals & Seats.
Stainless Steel Ball Valves with PTFE (Teflon) Seats & Seals offer excellent corrosion resistance for most applications. Stainless Steel & PTFE work well in applications including but not limited to water, oil, gas, air, light alkali's and acids, biodiesel, fuels and alcohols.
2-Piece ball valves are full port valves. Full port valves have no reduction in size through the passage of the valve so that pressure drop to the working fluid is minimal when passing through the valve. 2-piece ball valves are serviceable and can be taken apart into 2 pieces.
These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage.
Flanged ball valves can easily be installed and removed from a piping system without disturbing the other pipe connections.
Features:
Pressure Rating: 150 LB.
Full Port.
Working Temperature: -10℃ - 150℃.
Investment Casting.
Blow-out Proof Stem.
ISO 5211 Mounting Pad.
Flange Dimensions: ANSI B16.10.
Face to Face: ANSI B16.10.
Inspection Testing: API 598, EN 12266-1.
Stainless Steel Ball Valves with PTFE (Teflon) Seats & Seals offer excellent corrosion resistance for most applications. Stainless Steel & PTFE work well in applications including but not limited to water, oil, gas, air, light alkali's and acids, biodiesel, fuels and alcohols.
2-Piece ball valves are full port valves. Full port valves have no reduction in size through the passage of the valve so that pressure drop to the working fluid is minimal when passing through the valve. 2-piece ball valves are serviceable and can be taken apart into 2 pieces.
These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage.
Flanged ball valves can easily be installed and removed from a piping system without disturbing the other pipe connections.
Features:
Pressure Rating: 150 LB.
Full Port.
Working Temperature: -10℃ - 150℃.
Investment Casting.
Blow-out Proof Stem.
ISO 5211 Mounting Pad.
Flange Dimensions: ANSI B16.10.
Face to Face: ANSI B16.10.
Inspection Testing: API 598, EN 12266-1.
| Material Identifications | |
| Part Identification | Material |
| Body | SUS304 |
| Seat | PTFE |
| Ball | SUS304 |
| Gasket | PTFE |
| Bonnet | SUS304 |
| Bolt | SUS304 |
| Nut | |
| Stem | |
| Stem Washer | PTFE |
| O-Ring | NBR |
| Packing | PTFE |
| Gland | SUS304 |
| Disc Spring | |
| Nut | |
| Crown Washer | |
| Washer | |
| Handle | |
| Hex Socket Bolt | |
| Nut | |
| Handle Cover | Plastic |
| Bolt Washer | SUS304 |
