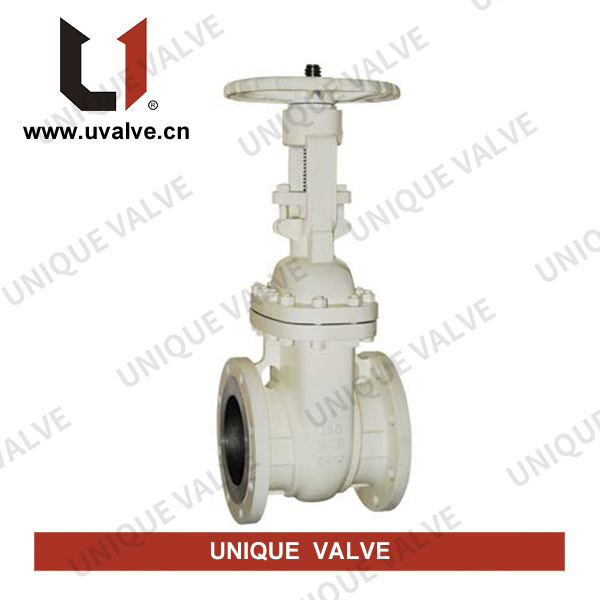

Metal Seated Gate Valve
Key Specifications / Features
Detail Information
Cast Iron, ductile iron metal seated Gate Valves.
Standard compliance:
Design and manufacture: BS 5163, DIN 3352, JIS B2043, AWWA C509.
Test and inspection: BS 6755, DIN 3230, JIS B2003, API 598.
Face to face dimensions: BS 5163: 1986, DIN 3202 F4-F5, JIS B2002, ANSI B16.10.
Flanged end: BS 4504, DIN 2532, JIS B2212, ANSI B16.10, ANSI B16.50.
Specifications:
Size:
Soft seat: 1-1/2 Inch to 24 Inch.
Metal seat: 1-1/2 Inch to 64 Inch.
Class: PN10, PN16, Class 125 LB, 150 LB.
Type: Bolted Bonnet, non rising stem, rising stem, NBR, EPDM, brass, bronze, stainless steel seat ring.
Material: CAST IRON, DUCTILE IRON.
Operation: Hand wheel, gear, square head, Bolted bonnet, Rising stem, Solid wedge disc.
Description:
Design and manufacture: MSS SP-70.
Face to face dimensions: ANSI B16.10.
Flanged end: ANSI B16.1.
Size: 2 Inch-36 Inch.
Safe working pressure: 200 PSI, 500 PSI.
Suitable medium: water, oil, gas.
Standard compliance:
Design and manufacture: BS 5163, DIN 3352, JIS B2043, AWWA C509.
Test and inspection: BS 6755, DIN 3230, JIS B2003, API 598.
Face to face dimensions: BS 5163: 1986, DIN 3202 F4-F5, JIS B2002, ANSI B16.10.
Flanged end: BS 4504, DIN 2532, JIS B2212, ANSI B16.10, ANSI B16.50.
Specifications:
Size:
Soft seat: 1-1/2 Inch to 24 Inch.
Metal seat: 1-1/2 Inch to 64 Inch.
Class: PN10, PN16, Class 125 LB, 150 LB.
Type: Bolted Bonnet, non rising stem, rising stem, NBR, EPDM, brass, bronze, stainless steel seat ring.
Material: CAST IRON, DUCTILE IRON.
Operation: Hand wheel, gear, square head, Bolted bonnet, Rising stem, Solid wedge disc.
Description:
Design and manufacture: MSS SP-70.
Face to face dimensions: ANSI B16.10.
Flanged end: ANSI B16.1.
Size: 2 Inch-36 Inch.
Safe working pressure: 200 PSI, 500 PSI.
Suitable medium: water, oil, gas.
