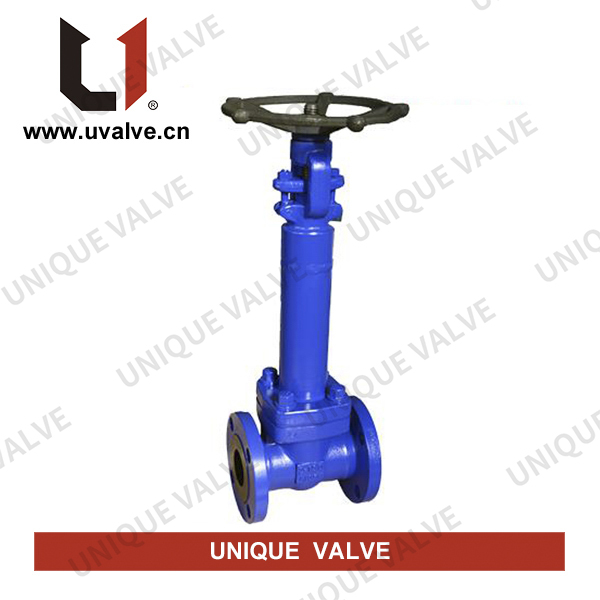

Forged Steel Bellows Seal Globe Valve
Key Specifications / Features
Forged Steel Bellows Seal Globe Valve Factory in China: Forged Steel Bellows Seal Globe Valve, DN8-DN50, 1/4-4 Inch, Class 150-2500 LB, OS&Y.
Request a quote
Detail Information
Size: DN8 - DN50 (1/4 Inch - 4 Inch).
Pressure rating: Class 150 - 2500 LB.
Material:
Body: ASTM A105N, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F51.
Disc: ASTM A182 F6a, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F315, ASTM A182 F315L, ASTM A182 F51.
Stem: SS 304, SS 304L, SS 316, SS 316L.
Bonnet: ASTM A105N, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F51.
Operated type: Hand-wheel.
Structure: Outside screw and yoke.
Flange connection: ANSI B16.5.
Butt-weld ends: ASME B16.25.
Socket-weld ends: ASME B16.11.
Screwed ends (NPT): ANSI, ASME B1.20.1.
Medium: W.O.G.
Temperature: -196 - 593℃.
Pressure rating: Class 150 - 2500 LB.
Material:
Body: ASTM A105N, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F51.
Disc: ASTM A182 F6a, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F315, ASTM A182 F315L, ASTM A182 F51.
Stem: SS 304, SS 304L, SS 316, SS 316L.
Bonnet: ASTM A105N, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F51.
Operated type: Hand-wheel.
Structure: Outside screw and yoke.
Flange connection: ANSI B16.5.
Butt-weld ends: ASME B16.25.
Socket-weld ends: ASME B16.11.
Screwed ends (NPT): ANSI, ASME B1.20.1.
Medium: W.O.G.
Temperature: -196 - 593℃.
