Class 150 Y-Type Strainer
Key Specifications / Features
Class 150 Y Strainer Maker in China: ASTM A351 CF8M Y Strainer, 1/2-20 Inch, CLASS 150, 300, 600, 900 LB, ASTM A351 CF8, ASTM A216 WCB, RF End.
Request a quote
Detail Information

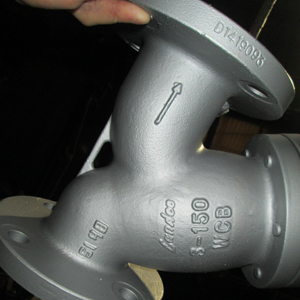

ANSI Class 150 Flanged Y-Type Strainer
Y type strainer is a indispensable device in transmission pipeline system, which is usually installed in the inlet of a pressure reducing valve, pressure relief valve, water valve and other device. The strainer is used to remove impurities in order to protect the valve and equipment in normal use.
Size: 1/2 Inch - 20 Inch.
Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB.
Pressure: Class 150 LB, 300 LB, 600 LB, 900 LB.
Connection: Flange.
Flange dimension: ANSI B16.5.
Face to face: ANSI B16.5.
Temperature range: ≤250℃.
Applicable medium: water, oil.
Advantages of Y type strainer:
1. Strong body material, which cannot be broken by transfer and installing.
2. Streamline design for low pressure drop. Epoxy coating, preventing corrosion and rust.
3. There is a pressure tap left on the bonnet, where the pressure measuring device can be installed to test pipe pressure.
4. Filter can be supplied at different precision according to different customer's request, and cleaned easily.
5. Dimension of inner cavity inlet is 1.2-1.3 time larger than the normal size, the screen length is 1.5 time than the normal one, thus improving flow condition and extending the cleaning cycle
6. The screen is installed by 45 degree, the mesh area is 3 to 4 times larger than nominal diameter area, with lower flow resistance and larger flow.
Y type strainer is a indispensable device in transmission pipeline system, which is usually installed in the inlet of a pressure reducing valve, pressure relief valve, water valve and other device. The strainer is used to remove impurities in order to protect the valve and equipment in normal use.
Size: 1/2 Inch - 20 Inch.
Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB.
Pressure: Class 150 LB, 300 LB, 600 LB, 900 LB.
Connection: Flange.
Flange dimension: ANSI B16.5.
Face to face: ANSI B16.5.
Temperature range: ≤250℃.
Applicable medium: water, oil.
Advantages of Y type strainer:
1. Strong body material, which cannot be broken by transfer and installing.
2. Streamline design for low pressure drop. Epoxy coating, preventing corrosion and rust.
3. There is a pressure tap left on the bonnet, where the pressure measuring device can be installed to test pipe pressure.
4. Filter can be supplied at different precision according to different customer's request, and cleaned easily.
5. Dimension of inner cavity inlet is 1.2-1.3 time larger than the normal size, the screen length is 1.5 time than the normal one, thus improving flow condition and extending the cleaning cycle
6. The screen is installed by 45 degree, the mesh area is 3 to 4 times larger than nominal diameter area, with lower flow resistance and larger flow.
