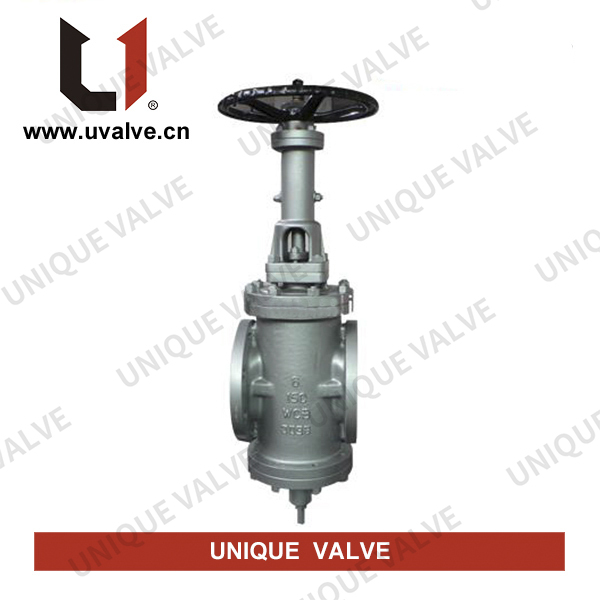

Carbon Steel Plug Valve

Name: Carbon Steel Plug Valve
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Carbon Steel Plug Valve Manufacturer in China: Carbon Steel Plug Valve, 1/2-36 Inch, Class 150-2500 LB, ANSI B16.34, API 6D, API 598, API 6A.

Request a quote

Detail Information

Carbon Steel Plug Valve, Flanged Plug Valve, Hard Sealing Plug Valve, A216 WCB Plug Valve.
Standard compliance:
1)Design and manufacture: API 6D, ANSI B16.34, API 599.
2)Test and inspection: API 598, API 6D.
3)Face to face dimensions: ANSI B16.10.
4)Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B.
5)Butt-welding end: ANSI B16.25.
6)Socket weld end: ANSI B16.11.
7)Screwed end: ANSI B1.20.1.

Plug Valve Detail Information:

Name	Carbon Steel Plug Valve.
Brand	UNIQUE.
Standard or Nonstandard	API 599.
Structure	Lubricated plug valves.
Pressure	150 LB, 300 LB, 600 LB, 900 LB, 1500 LB.
Power	Drive by medium.
Material	Carbon steel.
Temperature of Media	-29℃ - 200℃.
Media	Crude Oil, Natural Gas, etc.
Port Size	8 inch Raised Face RF Flange.

Specifications:
1)Size: 1/2 Inch to 36 Inch.
2)Class: 150 - 2500 LB.
3)Type: Lubricated taper plug valve, inverted pressure balance lubricated plug valve (venturi pattern, regular pattern), sleeve type soft sealing plug valve.
4)Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CN7M, ASTM A352 LCB, ASTM A352 LCC, ALLOY 20, CAST IRON, etc.
5)Operation: Lever, gear.
Top entry type, Self-lubricated.

Description:
Design and manufacture: ANSI B16.34, API 6D, API 598, API 6A.
Face to face dimensions: ANSI B16.10, API 6A.
End flange dimensions: ANSI B16.5, API 6A.
Butt-welding ends: ANSI B16.25.
Threaded ends: ANSI B2.1, API 5B.
Socket welded ends: ANSI B16.11.
Pressure test: API 598, API 6D.
Fire safe test: API 607, API 6FA, BS 6755, ISO 10497.
Corrosion resisting: NACE-MR-0175.
Size: 1/2 Inch - 18 Inch.
Materials of body, bonnet and trim:
Body, bonnet, plug: ASTM A216 WCB, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, etc.
Trim (Disc, body seat): PTFE, 13Cr.

Standard materials of parts:

Parts	Materials
Body	ASTM A216 WCB
Sleeve	PTFE
Plug	ASTM A216 WCB
Plate	PTFE
Adjusting plate	ASTM A216 WCB
Cover	ASTM A216 WCB
Adjusting bolt	ASTM A193 B7
Nut	ASTM A194 2H
Bolt	ASTM A193 B7
Support	Worm Gear

Dimensions (in mm & inch) and weight:
Class 150:

Size (Inch)	1/2	3/4	1	1.1/2	2	2.1/2	3	4	6	8	10	12	14
L (Threaded)	115	115	119	150	165	195	254	292	--	--	--	--	--
L (RF)	108	117	127	165	178	191	203	229	268	292	330	356	381
L (RTJ)	108	117	140	178	191	204	216	242	281	305	343	369	394
L (Butt welded)	140	149	172	241	267	305	330	356	457	521	559	635	762
L (Socket welded)	345	339	339	664	--	--	--	--	--	--	--	--	--
H (Center to top)	89	89	114	112	228	251	276	276	318	381	444	584	622
D (Flange Outside Dimension)	92	102	108	127	152	178	190	229	279	343	406	483	533

Class 300:

Size (Inch)	1/2	3/4	1	1.1/2	2	2.1/2	3	4	6	8	10	12	14	16
L (Threaded)	102	102	119	155	185	250	270	330	--	--	--	--	--	--
L (RF)	140	152	165	191	216	241	283	305	403	419	457	502	762	838
L (RTJ)	151	165	178	204	232	257	299	321	419	435	473	518	778	854
L (Butt welded)	140	149	172	241	267	305	330	356	457	521	559	635	762	838
H (Center to top)	89	89	114	112	228	251	276	276	318	381	444	584	622	622
D (Flange Outside Dimension)	95	117	124	156	165	190	210	254	318	381	345	521	584	648

Class 600:

Size (Inch)	1/2	3/4	1	1.1/2	2	2.1/2	3	4
L (Threaded)	116	116	149	175	190	210	284	326
L (RF)	165	190	216	241	292	330	356	432
L (RTJ)	163	190	216	241	395	333	359	435
L (Butt welded)	165	191	216	241	292	330	356	432
H (Center to top)	159	159	174	194	228	251	276	276
D (Flange Outside Dimension)	95	118	124	156	165	190	210	273
