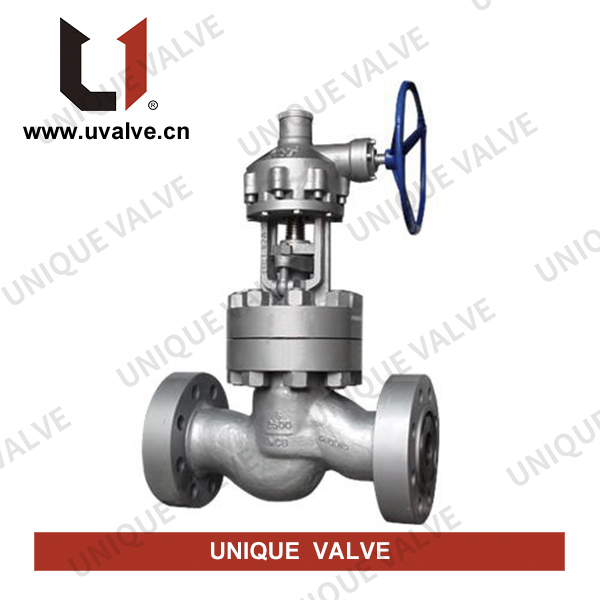

Carbon Steel Globe Valve
Key Specifications / Features
Detail Information
| Valve Size | 1 Inch-24 Inch, DN25-DN600. |
| Pressure Class | Class 150 LB-Class 900 LB, PN10-PN150. |
| Materials | ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A216 WCC, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A995 4A, ASTM A890 5A. |
| Design and Manufacturing Standards | BS 1873, EN 558-1. |
| Pressure Test Standards | API 598, DIN 3230. |
| Fire Safety Test Standards | API 607. |
| Quality, Product Certifications | ISO 9001, ISO 14001, ISO 18001. |
| Fugitive Emissions | ISO 15848-1, API 622. |
| NACE | NACE MR 0103, NACE MR 0175. |
| Valve operator options | Handwheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
| Shutoff Class | API 598 (Zero Leakage). |
| Bore | Full Bore. |
| Process Connection Types | RF, RTJ, BW. |
Design, Manufacture according to: API 598, DIN 3356, BS 7350.
Face to Face according to: ASME B16.10.
Flange Dimensions according to: ASME B16.5.
Pressure, Temperature according to: ASME B16.34.
Test, Inspection according to: API 6D, API 598.
Visual Inspection according to: MSS SP-55.
Marking according to: MSS SP-25.
Media: Crude Oil, Natural Gas, etc.
Material Option:
Carbon steel: ASTM A216 Gr. WCB, ASTM A216 WCC, ASTM A216 WCA, etc.
Low temperature steel: ASTM A352 Gr. LCB, ASTM A352 LCC, ASTM A352 LC1, etc.
Cr-Mo steel: ASTM A217 Gr. WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12, ASME A217 C12A, etc.
Stainless Steel: ASTM A351 Gr. CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CF8C, etc.
Alloy steel: ASTM A351 CN7M alloy 20, ASTM A351 CN3M alloy 20 modified, ASTM CT15C, etc.
Super duplex: ASTM A995 Gr. 4A, ASTM A890 5A, ASTM A995 CE8MN, ASTM A995 CD6MN, ASTM A995 CD3MN, etc.
Aluminum bronze: ASTM B148 C95500, ASTM B148 C95600, ASTM B148 C95800, etc.
Monel: M30C, M35-1, CZ100, etc.
Inconel: CY40 inconel 600, etc.
Hastelloy: CW2m Hastelly C4, N12MV Hastelloy B, CW12MW Hastelloy C276, etc.
Incoloy: CU5MCuC Incoloy 825, CW6MC Incoloy 625, etc.
