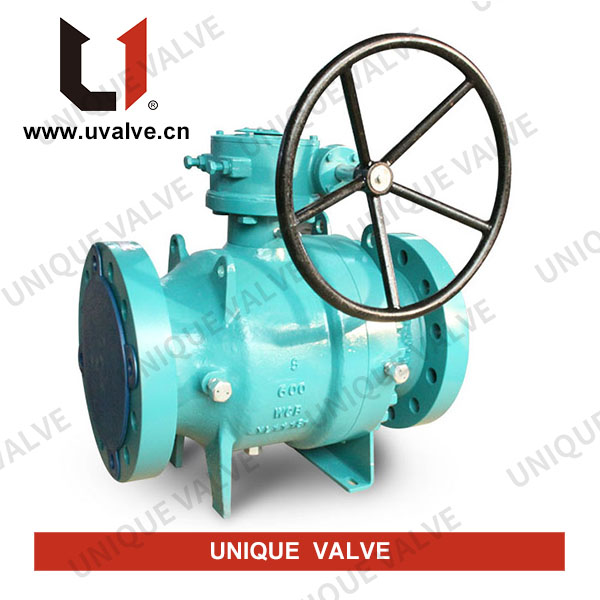

ASTM A216 WCB Trunnion Mounted Ball Valve, 8 Inch, 600 LB
Key Specifications / Features
ASTM A216 WCB Trunnion Mounted Ball Valve Maker: Trunnion Mounted Ball Valve, 8 Inch, Class 600 LB, API 6D, ASTM A216 WCB, RF Flanged Ends, API 598 Test.
Request a quote
Detail Information
Fixed Ball Valve, ASTM A216 WCB Trunnion Ball Valve, Flange Fixed Ball Valve, Carbon Steel Trunnion Ball Valve, Stainless Steel Trunnion Ball Valve, F304 Trunnion Ball Valve, A105 Trunnion Ball Valve, Trunnion Ball Valve.
Valve Description:
Design standard: API 6D.
Body material: ASTM A216 WCB.
Nominal diameter: 8 Inch.
Pressure: Class 600 LB.
End connection: RF Flange.
Face to face: ASME B16.10.
Working temperature: -29℃ - +150℃.
Test and inspection: API 598.
1. Material: ASTM A105, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A350 LF2, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L.
2. Size: 2 - 48 Inch.
3. Pressure: Class 150 - 1500 LB.
4. Material: Carbon Steel, Low Temperature Carbon Steel, Stainless and Duplex Stainless Steel, Exotic Alloys.
5. Guarantee: 18 months.
7. Suitable medium: Water, oil, gas, etc.
8. Type: Side Entry with worm gear.
9. Model: Q347F-1500 LB.
Painting Overlays: Epoxy, Alloy 625, Tungsten Carbide, Stainless Steel, Chromium Carbide, ENP.
Design & Manufacture Std.: API 608, ASME B16.34, API 6D, BS 5351.
Face to Face Std.: ASME B16.10, JIS B2002, API 6D, DIN 3202, ASME B16.25.
End Connection Std.: ASME B16.5, ASME B16.47, JIS B2212-JIS B2214, DIN 2543-DIN 2550, ASME B16.34.
Test Standard: ISO 5208, API 598, JIS B2003, API 6D, BS 6755.
Operated: Lever, Gear, Pneumatic Actuator, Electric Actuator.
Valve Description:
Design standard: API 6D.
Body material: ASTM A216 WCB.
Nominal diameter: 8 Inch.
Pressure: Class 600 LB.
End connection: RF Flange.
Face to face: ASME B16.10.
Working temperature: -29℃ - +150℃.
Test and inspection: API 598.
1. Material: ASTM A105, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A350 LF2, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L.
2. Size: 2 - 48 Inch.
3. Pressure: Class 150 - 1500 LB.
4. Material: Carbon Steel, Low Temperature Carbon Steel, Stainless and Duplex Stainless Steel, Exotic Alloys.
5. Guarantee: 18 months.
7. Suitable medium: Water, oil, gas, etc.
8. Type: Side Entry with worm gear.
9. Model: Q347F-1500 LB.
Painting Overlays: Epoxy, Alloy 625, Tungsten Carbide, Stainless Steel, Chromium Carbide, ENP.
Design & Manufacture Std.: API 608, ASME B16.34, API 6D, BS 5351.
Face to Face Std.: ASME B16.10, JIS B2002, API 6D, DIN 3202, ASME B16.25.
End Connection Std.: ASME B16.5, ASME B16.47, JIS B2212-JIS B2214, DIN 2543-DIN 2550, ASME B16.34.
Test Standard: ISO 5208, API 598, JIS B2003, API 6D, BS 6755.
Operated: Lever, Gear, Pneumatic Actuator, Electric Actuator.
