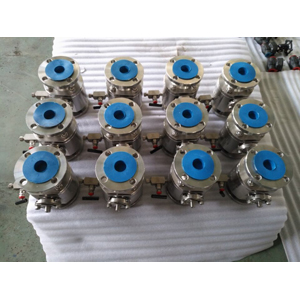

ASTM A182 F304 Ball Valve
Key Specifications / Features
ASTM A182 F304 Ball Valve Manufacturer in China: ASTM A182 F304 Ball Valve, ISO 14313, API 6D, BS 5351, GB/T 19672, 2-60 Inch, DN50-DN1500, Class 150-2500.
Request a quote
Detail Information
Forged Stainless Steel Ball Valve, ASTM A182 F304 Ball Valve, Forged Steel Ball Valve.
Design Features:
The ball valve are designed in accordance with ISO 14313, API 6D, BS 5351, GB/T 19672.
Simple structure with good sealing performance and small torque.
Full bore or reduced bore designed with the minimum flow resistance (zero actually).
Emergency sealant injection.
Cavity pressure self relief.
Independent ball and stem.
Low emission packing.
Fire safe, anti-static and anti-blowout stem design.
Valve seat function DBB, DIB-1, DIB-2.
Optional extended bonnet.
Product Range:
Body material: ASTM A182 F304.
Nominal diameter: 2 - 60 Inch (DN50-DN1500).
End Connection: RF, RTJ, BW.
Pressure range: Class 150 - 2500 LB (PN16-PN420).
Working temperature: -46 - +200℃.
Operation: Wrench, worm gear, electric, pneumatic, gas over oil actuator and electro-hydraulic actuator.
Applicable Media: Water, Oil, Gas, Nitric Acid, Acetic Acid.
Design Features:
The ball valve are designed in accordance with ISO 14313, API 6D, BS 5351, GB/T 19672.
Simple structure with good sealing performance and small torque.
Full bore or reduced bore designed with the minimum flow resistance (zero actually).
Emergency sealant injection.
Cavity pressure self relief.
Independent ball and stem.
Low emission packing.
Fire safe, anti-static and anti-blowout stem design.
Valve seat function DBB, DIB-1, DIB-2.
Optional extended bonnet.
Product Range:
Body material: ASTM A182 F304.
Nominal diameter: 2 - 60 Inch (DN50-DN1500).
End Connection: RF, RTJ, BW.
Pressure range: Class 150 - 2500 LB (PN16-PN420).
Working temperature: -46 - +200℃.
Operation: Wrench, worm gear, electric, pneumatic, gas over oil actuator and electro-hydraulic actuator.
Applicable Media: Water, Oil, Gas, Nitric Acid, Acetic Acid.
