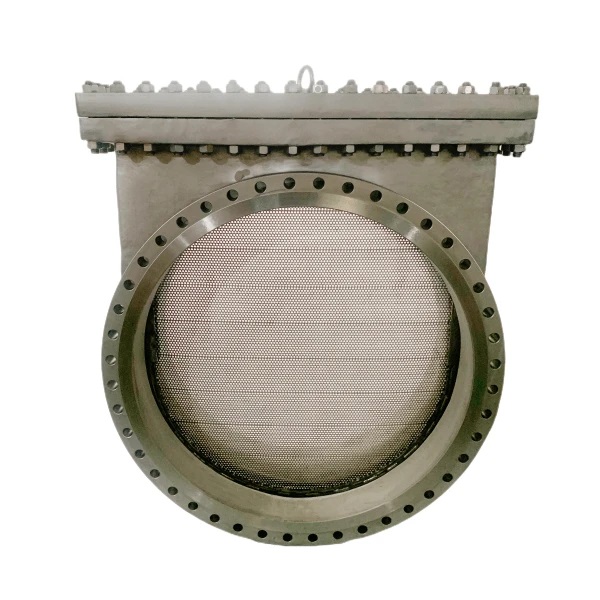

API 598 Basket Strainer

Product Details:
The basket strainer is composed of filter body, filter basket, filter cover and inlet outlet. When the liquid come into the filter basket, the particle stay at the inside of the basket and the clean liquid come out from the outlet. Liquid flow through the filter, which filters out impurities to protect pump, compressors, instrumentation and other equipment to work properly. When cleaning the filter, just remove the removable cartridge filtered to remove impurities and then re-load it. It's extremely easy to use and maintain.

Size: DN40-DN600, 11/2 Inch-24 Inch.
Pressure: PN10-PN150, CLASS 150-900 LB.
Connection End: RF, RTJ.
Standard: API 598, MSS SP-25.
Operation Way: Self-Operated.
Packing Method: Standard Export worthy duly wooden boxes Shipment Way By Express, By Air or By Sea, as customers request.

Construction is as follows:
Basket or "U" Type.
Steel Fabricated.
With Drain Plug.
Renewable Screen.
With Drain Valves.
Quick Open.
With Hang Hole.
Flanged Ends to ASME B16.5.
