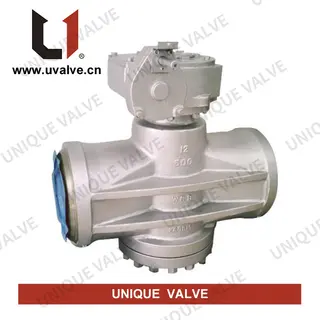

ANSI Nylon Sleeved Plug Valve
Key Specifications / Features
ANSI Nylon Sleeved Plug Valve Factory in China: ANSI Nylon Sleeved Plug Valve, 1/2-16 Inch, Class 150-300 LB, API 6D, API 599, ASME B16.5, Carbon Steel, SS.
Detail Information
ANSI Nylon Sleeved Plug Valve is suitable for the -40 - 180℃ of aqua regia, various concentration of sulfuric acid and various kinds of organic acid, strong acid, strong oxidizer, fep also apply to all kinds of the concentration of alkali organic solvents and other corrosive gas and liquid medium for the line.
The main features:
1. Suitable for regular operation.
2. Quick and light opening and closing.
3. Low fluid resistance.
4. Good sealing performance.
5. No vibration and low noise.
6. Any installation.
7. Simple structure, small relative volume, convenient for maintenance.
8. The lining layer has extremely high chemical stability.
9. The valve can be used in the whole pressure range to avoid leakage and shut off more convenient to the line system and pipeline maintenance.
Product specification:
Design specification: API 6D, API 599.
Structure length: ASME B16.10.
Connection standard: ASME B16.5.
Pressure test: API 598.
Product id: MSS sp-25.
Product range:
Main material: carbon steel, stainless steel, lining F46 PFA.
Nominal size: 1/2 Inch - 16 Inch.
Pressure range: 150 LB - 300 LB.
Applicable temperature: -40 - +150℃.
Operation mode: turbine, pneumatic, hydraulic, electric (optional).
Applicable medium: suitable for nominal pressure Class150 - 300 LB, working temperature and 40 - 150℃ oil, chemical industry, dyeing, pharmaceutical, chemical fertilizer, acid alkali etc, is one of the most ideal choice of equipment in the antiseptic valve.
The main features:
1. Suitable for regular operation.
2. Quick and light opening and closing.
3. Low fluid resistance.
4. Good sealing performance.
5. No vibration and low noise.
6. Any installation.
7. Simple structure, small relative volume, convenient for maintenance.
8. The lining layer has extremely high chemical stability.
9. The valve can be used in the whole pressure range to avoid leakage and shut off more convenient to the line system and pipeline maintenance.
Product specification:
Design specification: API 6D, API 599.
Structure length: ASME B16.10.
Connection standard: ASME B16.5.
Pressure test: API 598.
Product id: MSS sp-25.
Product range:
Main material: carbon steel, stainless steel, lining F46 PFA.
Nominal size: 1/2 Inch - 16 Inch.
Pressure range: 150 LB - 300 LB.
Applicable temperature: -40 - +150℃.
Operation mode: turbine, pneumatic, hydraulic, electric (optional).
Applicable medium: suitable for nominal pressure Class150 - 300 LB, working temperature and 40 - 150℃ oil, chemical industry, dyeing, pharmaceutical, chemical fertilizer, acid alkali etc, is one of the most ideal choice of equipment in the antiseptic valve.
