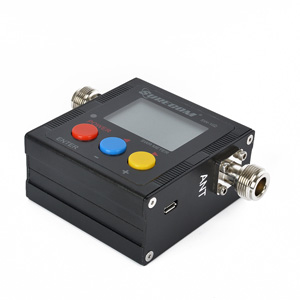

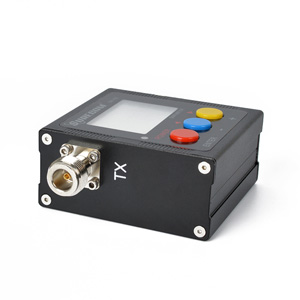

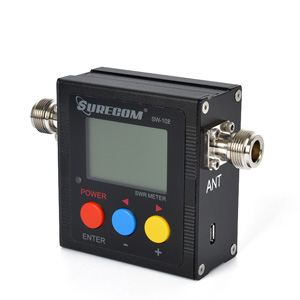

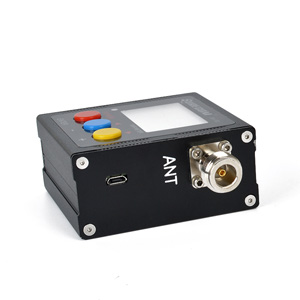

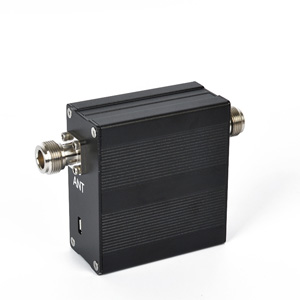

VHF UHF Digital SWR Power Meter SW-102
Key Specifications / Features
China Digital SWR Power Meter Truest provides VHF UHF Digital SWR Power Meter, USB Cable, Low Insertion Loss, All Function display, permanently connected.
Request a quote
Detail Information
Major Features:
1. VSWR. Forward and reflected power direct digital readout, without any calibration.
2. Maximum measurable power range up to 120W.
3. Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
4. Build in Frequency counter.
5. All Function display (Frequency,Power, SWR, FW, RW, Battery voltage)
6. Frequency range: 100 - 520MHz.
7. Measurable power range: 0 - 120W.
8. Input Frequency counter.
9. Maximum power: 120W; Accuracy: mean ±5%.
11. Impedance: 50Ω.
12. Size: W 76 × H 77 ×D35 mm.
13. Weight: <220 grams.
14. Battery: 3.7V Li-ion Rechargeable Battery.
1. VSWR. Forward and reflected power direct digital readout, without any calibration.
2. Maximum measurable power range up to 120W.
3. Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
4. Build in Frequency counter.
5. All Function display (Frequency,Power, SWR, FW, RW, Battery voltage)
6. Frequency range: 100 - 520MHz.
7. Measurable power range: 0 - 120W.
8. Input Frequency counter.
9. Maximum power: 120W; Accuracy: mean ±5%.
11. Impedance: 50Ω.
12. Size: W 76 × H 77 ×D35 mm.
13. Weight: <220 grams.
14. Battery: 3.7V Li-ion Rechargeable Battery.
| MAX. Power in | 120 W |
| V.S.W.R | 1.00-19.9 |
| Frequency Ranger | COVER:100MHz-520MHz |
| Insertion Loss | < 0.15dB (VHF), < 0.25dB (UHF) |
| Temperature | 0℃-60℃ |
| Input Frequency counter | Yes |
| Battery Voltage Display | Yes |
| Battery Build-in | 14500 Li-ion Rechargeable |
| Auto Power Off | 1-9 mins |
| Size | 66*68*37 (mm) |
| Charger in | 5V (micro usb) |
| Backlight | AUTO OFF 1-9 mins |
| Interface (in and out) | N (SL16) |
| Weight | 220g (include battery) |
