Name: Spindle Coupling - GZC Type
Brand: www.suodacoupling.com
SKU: Suoda 15 GZ 03
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Detail Information

Spindle Coupling - GZC Type - China Suoda

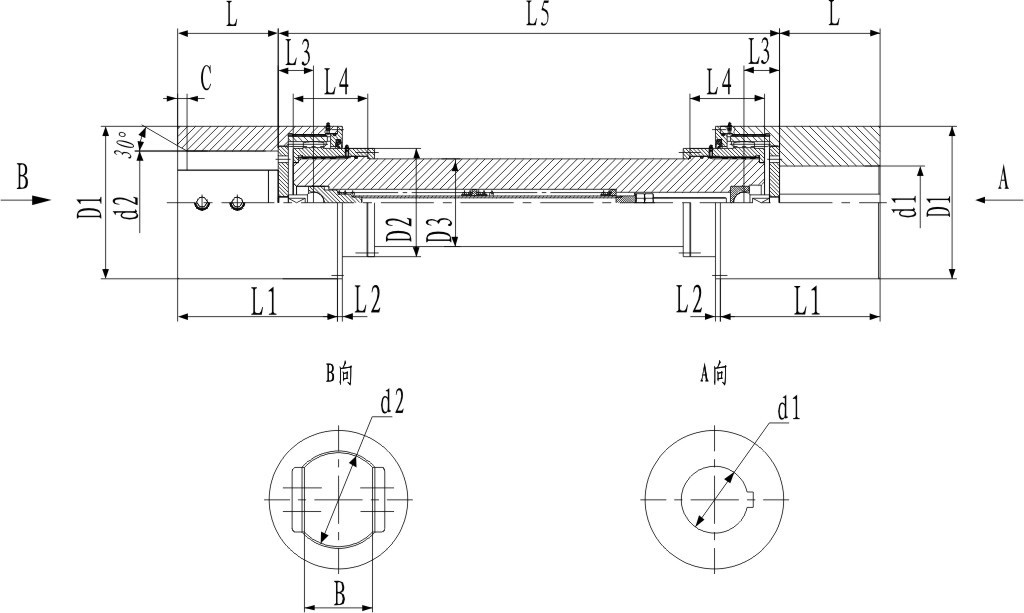

SIZE	NOMINAL TORQUE kN·m	CYLINDRICAL SHAFT HOLE SIZE		FLAT-SHAPED SHAFT HOLE SIZE			D1	D2	D3	L1	L2
		d1, d2	L max	d2max	Lmax	Bmax
			J1 Type
GZC7	63	140-190	202-282	190	282	140	280	200	160	336-416	38
GZC8	80	160-200	242-282	200	282	160	300	220	180	392-432	44
GZC9	100	170-220	242-282	220	282	170	330	230	200	392-432	44
GZC10	125	190-240	282-330	240	330	180	355	250	220	442-490	51
GZC11	200	190-260	282-330	260	330	200	410	290	240	457-505	51
GZC12	315	240-300	330-380	300	380	220	460	320	260	518-568	57
GZC13	450	280-340	380-450	340	450	250	510	360	300	596-666	57
GZC14	560	300-360	380-450	360	450	280	560	400	320	628-698	64
GZC15	710	340-400	450-540	400	540	300	610	430	350	716-806	64
GZC16	900	360-420	550-650	420	650	320	660	460	380	842-942	64
GZC17	1120	400-460	650	460	650	350	710	500	420	964	64
GZC18	1250	420-500	650	500	650	380	760	540	460	990	76
GZC19	1600	440-530	650-800	530	800	400	810	580	500	1005-1155	76
GZC20	2000	450-560	650-800	560	800	420	860	600	530	1031-1181	76
GZC21	2240	480-600	650-800	600	800	450	910	650	560	1056-1206	76
GZC22	2800	530-630	800	630	800	480	965	680	600	1230	82
GZC23	3150	560-670	800-900	670	900	500	1000	710	630	1250-1350	82

SIZE	L3	L4	L5min	L6	Cmax	QUALITY Wt (kg)		ROTATIONAL INERTIA kg.m2		GREASE CONSUMPTION ML
						L5min QUALITY Wt	The quality of growth per meter 1m/Wt	L5min of rotational inertia	The rotational inertia of the growth per meter
GZB7	85	200	800	5	19	380	158	4.26	0.501	1400
GZB8	95	220	1000	5	20	480	200	6.02	0.81	1800
GZB9	95	230	1000	5	22	550	247	7.95	1.24	2100
GZB10	98	250	1000	5	24	720	298	12.7	1.8	2500
GZB11	106	280	1200	5	26	1110	355	25.95	2.56	3000
GZB12	112	300	1200	6	30	1480	417	43.43	3.52	4000
GZB13	136	340	1400	6	34	2020	555	71.76	6.24	5200
GZB14	145	380	1500	6	36	2600	631	114.4	8.1	6500
GZB15	160	400	1500	6	40	3300	755	178	11.6	8000
GZB16	172	440	1600	10	42	4300	890	272	16	10000
GZB17	182	480	1800	10	46	5500	1090	392	24	12000
GZB18	195	520	2000	10	50	6700	1310	553	35	15000
GZB19	215	540	2000	10	53	8350	1540	805	48	16500
GZB20	225	560	2000	10	56	9500	1730	1024	61	18500
GZB21	236	600	2500	10	60	11500	1930	1334	75.66	21000
GZB22	246	640	2500	13	63	12600	2220	1621	99.9	24000
GZB23	265	680	2500	13	67	17900	2450	2579	122	27000

Notes:
1. The weight and rotational inertia are approximate value that calculated on base of the maximum diameter of cylindrical shaft and L5min intermediate shaft.

2. Types of shaft holes: In general, the drive end adopt cylindrical type and the driven end adopt flat-shaped type.

3. Cmax are equal to one tenth of flat-shaped shaft hole, that is, C=0.1d2.

4. With flat-shaped shaft holes, the tolerance limit between d2 and B is H9.
