Name: Shaft Flange Gear Coupling - GZF Type
Brand: www.suodacoupling.com
SKU: Suoda 15 GZ 09
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Detail Information

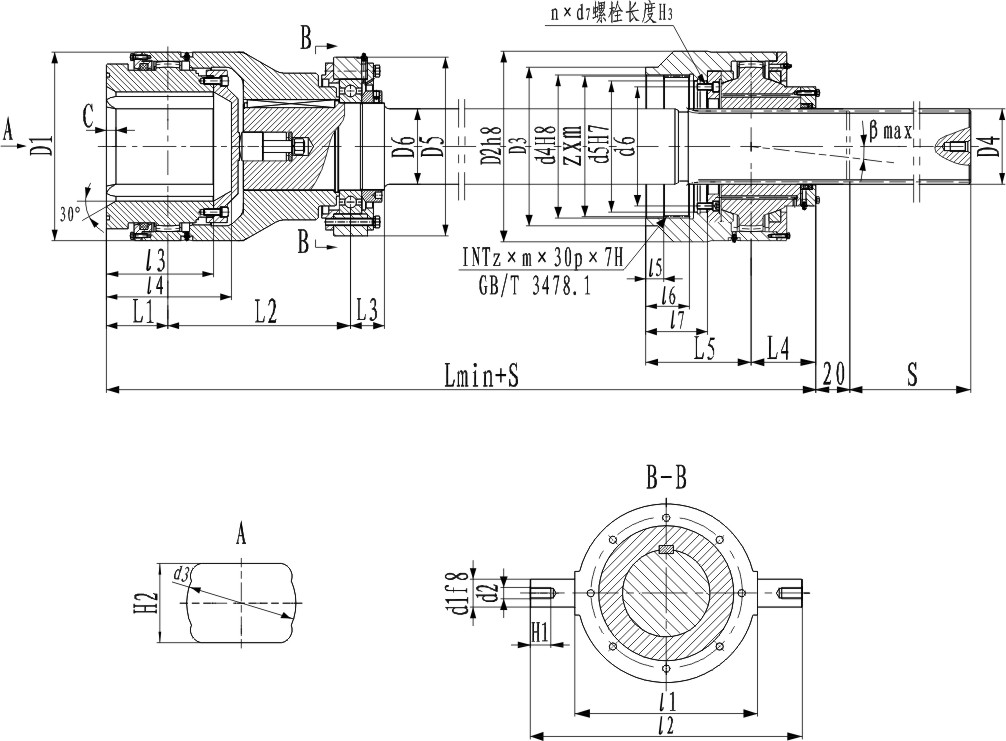

Shaft Flange Gear Coupling - GZF Type - China Suoda

SIZE	NOMINAL TORQUE Tn kNm	WORKING SHAFT	OVERALL DIMENSION												STROKE	TRUNNION SIZE
		knuckle line	L1	L2	L3	L4	L5	L min	D1	D2 (h8)	D3	D4	D5	D6		d1	L1	L2	d2×H1
		β	L1	L2	L3	L4	L5	L min	D1	D2 (h8)	D3	D4	D5	D6		(f8)
GZF200	31.5	≤1.5°	90	250	50	80	190	960	200	200	170	88	200	90	500	40	200	345	M20×35
GZF250	50		105	280	60	90	195	1050	250	258	220	105	250	107		45	270	425	M20×35
GZF285	80		115	315	60	105	205	1140	285	270	245	120	270	122		50	278	442	M20×40
GZF300	100		115	315	62	108	205	1165	300	280	250	124	280	126	600	50	292	487	M24×45
GZF335	140		130	360	65	135	235	1315	335	330	280	150	300	152		55	293	488	M24×45
GZF355	180		130	360	75	145	245	1360	355	350	310	174	330	176		55	312	505	M24×45
GZF390	224		140	390	80	155	255	1450	390	380	335	180	360	182		60	360	570	M24×50
GZF405	250		140	390	80	155	255	1450	405	400	340	194	390	196		60	390	580	M24×50
GZF440	315		150	430	85	165	260	1540	440	440	375	208	410	210		65	420	650	M24×50
GZF475	400		155	460	85	165	265	1600	475	480	415	220	450	222		70	460	684	M36×70
GZF510	500		160	490	90	180	310	1750	510	520	430	245	480	247	700	80	500	770	M36×70
GZF550	630		160	510	95	180	310	1770	550	550	470	252	510	254		85	520	800	M36×70
GZF580	750		165	515	98	185	320	1790	580	560	485	258	525	260		90	540	850	M42×80
GZF610	840		225	580	105	210	360	2060	610	610	520	280	580	282		100	600	940	M42×80
GZF660	1050		245	640	115	230	390	2230	660	660	540	295	630	297		100	650	990	M42×80
GZF710	1300		265	680	125	250	410	2380	710	710	580	315	680	317		110	700	1070	M42×80
GZF760	1600		290	730	135	260	430	2540	760	760	620	340	740	342		120	750	1150	M42×80

ROLL END CONNECTION SIZE							REDUCER END CONNECTION SIZE								QUALITY kg		ROTATIONAL INERTIA kg ㎡
d3max		H2max		L 3max	L 4max	C	d4 (H8)	d5 (H7)	d6 (JS10)	m×z	n×d7×H3	L 5	L 6	L 7	Lmin	For every 100 mm growth	Lmin	For every 100 mm growth
Nominal dimension	Extreme deviation	Nominal dimension	Extreme deviation	L 3max	L 4max	C	d4 (H8)	d5 (H7)	d6 (JS10)	m×z	n×d7×H3	L 5	L 6	L 7	Lmin	For every 100 mm growth	Lmin	For every 100 mm growth
125	+0.20 +0.10	95	+0.20 +0.10	135	175	10	155	130	110	4×36	6×M10×25	35	85	120	150	4.77	0.81	0.02
150		110		195	235	15	195	170	150	4×46	6×M10×25	35	90	125	207	6.80	1.77	0.05
165		120		205	245		220	195	175	4×46	10×M10×25	40	95	130	291	8.88	3.22	0.09
180		130		210	250		220	195	175	5×42	12×M12×30	45	100	132	322	9.48	3.96	0.11
195	+0.25 +0.15	150	+0.25 +0.15	210	255		245	220	200	5×46	12×M12×30	50	100	150	460	13.87	7.13	0.19
195	+0.25 +0.15	150	+0.25 +0.15	215	255		260	240	220	5×50	12×M12×30	50	100	150	507	18.67	9.04	0.29
220	+0.35 +0.20	170	+0.35 +0.20	230	275	25	280	260	240	5×54	12×M12×30	50	100	150	650	19.98	13.82	0.38
240		180		240	285		305	280	260	5×58	12×M12×30	50	110	155	785	23.2	17.92	0.48
260		190		250	295		336	306	276	6×54	12×M16×40	50	115	155	836	26.67	22.84	0.65
280		210		272	317		365	330	300	6×58	12×M16×40	50	115	155	1032	29.84	32.69	0.84
300	+0.40 +0.25	230	+0.40 +0.25	300	355	30	390	345	315	6×62	12×M16×40	50	130	170	1531	37.01	55.5	1.20
320		240		320	375		400	370	320	6×64	12×M16×40	50	130	170	1537	39.15	65.15	1.48
340		260		325	388		405	370	320	6×66	12×M16×40	50	135	175	1769	41.04	82.67	1.73
400		300		420	470	35	455	420	370	8×54	12×M20×50	50	160	210	2492	48.34	115.9	2.25
420		320		440	500	35	485	440	400	8×58	12×M20×50	60	180	230	3178	53.65	173	2.92
460		350		480	540	40	530	475	430	10×50	12×M20×50	60	190	240	3693	61.18	232.7	3.85
500		380		530	590	40	570	515	470	10×54	12×M20×50	60	200	250	4592	71.27	331.5	5.15

Note: The quality and rotary inertia are approximate values that calculated according to the max diameter of cylindrical shaft hole, when the total length reaches the minimum valve.
