Rigid Gear Coupling - GAU Type
Model Number: Suoda 15 GA 04
Key Specifications / Features
China Rigid Gear Coupling Manufacturer Suoda Offers Rigid Gear Couplings, GAU Type Gear Couplings, Double Jointed, Special Surface Treatment.
Detail Information
| SIZE |
NOMINAL TORQUE kN·m |
ALLOWABLE SPEED rpm |
DIAMETER mm |
DIMENSIONS mm |
WT Kg |
GREASE QUANTITY Kg |
|||||

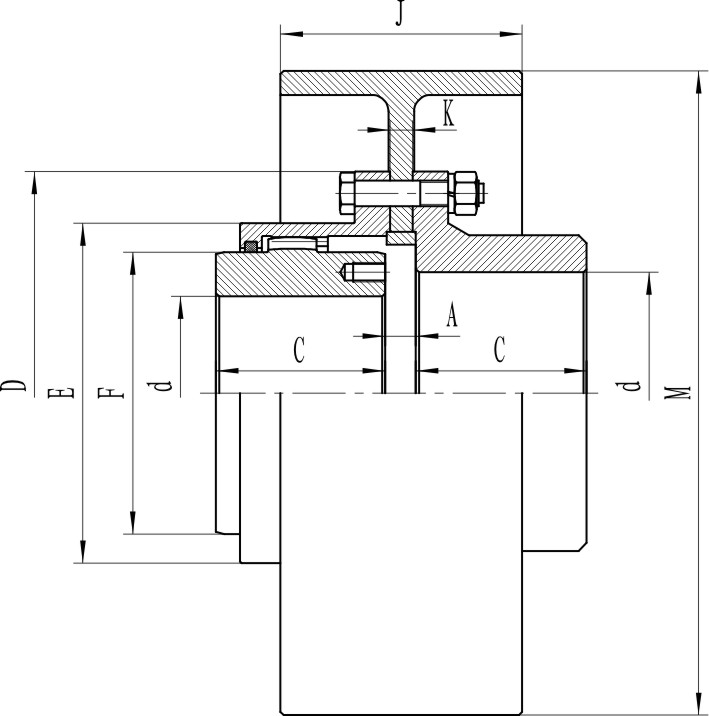

| 1045 | 4140 | D | C | A | E | F | |||||
| 1 | 1.80 | 2.5 | 6000 | 12-52 | 111 | 43 | 3+K | 82.5 | 69 | 4.5+L | 0.05 |
| 2 | 2.76 | 3.9 | 4620 | 18-62 | 142 | 50 | 3+K | 104.5 | 85 | 8+L | 0.07 |
| 3 | 5.55 | 7.8 | 4140 | 28-78 | 168 | 62 | 3+K | 130.5 | 107 | 14+L | 0.1 |
| 4 | 8.70 | 12.2 | 4000 | 40-98 | 200 | 76 | 5+K | 158.5 | 133 | 26+L | 0.19 |
| 5 | 14.10 | 19.7 | 3860 | 50-112 | 225 | 90 | 5+K | 183.5 | 152 | 39+L | 0.32 |
| 6 | 22.80 | 31.9 | 3720 | 60-132 | 265 | 105 | 6+K | 211.5 | 178 | 63+L | 0.46 |
| 7 | 34.80 | 48.7 | 3190 | 70-156 | 300 | 120 | 6+K | 245.5 | 209 | 95+L | 0.63 |
| 8 | 44.00 | 61.6 | 2900 | 85-174 | 330 | 135 | 8+K | 275 | 234 | 131+L | 1.04 |
| 9 | 69.80 | 97.7 | 2570 | 95-190 | 370 | 150 | 8+K | 307 | 254 | 180+L | 1.54 |
| 10 | 83.80 | 117.3 | 2330 | 110-210 | 406 | 175 | 8+K | 335 | 279 | 248+L | 2.1 |
| 11 | 152.0 | 212.8 | 2150 | 120-233 | 438 | 190 | 8+K | 367 | 305 | 318+L | 2.63 |
| 12 | 203.5 | 284.9 | 1800 | 130-280 | 505 | 220 | 10+K | 423 | 355 | 488+L | 4.18 |

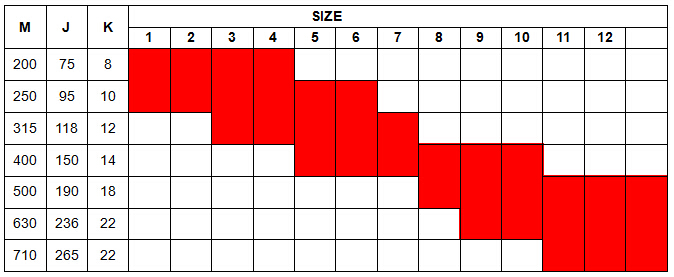

Sizes of Brake Drums
