Non-lubricated Disc Coupling - DT Type

Name: Non-lubricated Disc Coupling - DT Type
SKU: Suoda 15 DT 01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Non-lubricated Disc Coupling Manufacturer Suoda Offers Non-lubricated Disc Couplings, DT Type Disc Couplings, Equipped with Joint Pipe.

Request a quote

Detail Information

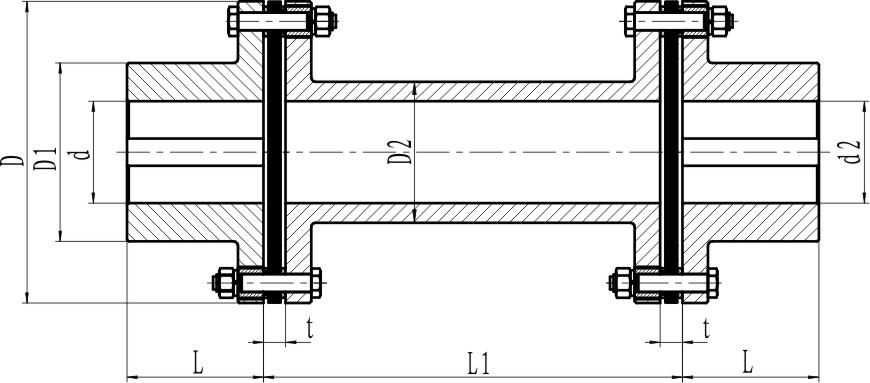

Type	Nominal torque Tn N.m	Allowable speed (n)r/min	Diameter of axle hole	Length of axle hole	D	D1	D2	L1 min	t	Moment of inertia kg·㎡	Weight Kg
Type	Nominal torque Tn N.m	Allowable speed (n)r/min	d, d1	Length of axle hole	D	D1	D2	L1 min	t	Moment of inertia kg·㎡	L1 min Weight	Every 1m/weight
DT 1	63	9300	20-38	38-82	92	53	60	44	8±0.2	0.010	3.7	22.79
DT 2	100	8400	25-45	44-112	102	63	72	49	8±0.2	0.018	6.3	32
DT 3	250	6700	30-55	60-112	128	77	87	60	11±0.3	0.056	9.14	46
DT 4	500	5900	35-65	60-142	145	91	102	70	11±0.3	0.095	13.63	64
DT 5	800	5100	40-75	84-142	168	105	117	83	14±0.3	0.219	23.35	84
DT 6	1000	4750	45-80	84-172	180	112	124	86	15±0.4	0.35	32.28	94
DT 7	1600	4300	50-85	84-172	200	120	134	86	15±0.4	0.51	39.07	110
DT 8	2000	4200	55-85	84-172	205	120	135	91	20±0.4	0.53	39.86	112
DT 9	2500	4000	55-90	84-172	215	128	145	101	20±0.4	0.68	45.78	129
DT 10	3150	3650	60-95	107-172	235	132	151	109	23±0.5	0.97	56.13	140
DT 11	4000	3400	60-100	107-212	250	145	164	109	23±0.5	1.48	74.09	165
DT 12	6300	3200	60-110	107-212	270	155	184	119	23±0.5	2.13	87.65	207
DT 13	12500	2850	65-120	107-212	300	162	194	128	27±0.6	2.93	106.23	231
DT 14	16000	2700	70-125	107-212	320	176	213	138	27±0.6	3.98	125.23	278
DT 15	20000	2450	75-130	107-252	350	186	215	153	32±0.7	6.44	173.52	283
DT 16	25000	2300	80-150	132-252	370	203	235	158	32±0.7	8.48	200.88	338
DT 17	31500	2150	90-160	132-302	400	230	266	178	32±0.7	14.2	279.61	433
DT 18	40000	1950	100-180	167-302	440	245	280	190	38±0.9	20.73	345.53	480
DT 19	45000	1850	100-190	167-352	460	260	300	200	38±0.9	28.56	421	551
DT 20	50000	1800	120-200	167-352	480	280	320	215	38±0.9	35.52	482.6	628
DT 21	56000	1700	120-220	167-352	500	295	336	225	38±0.9	43.05	536	692
DT 22	63000	1600	140-220	202-352	540	310	360	236	44±1	58.99	641	794
DT 23	80000	1450	140-240	202-410	600	335	385	257	50±1.2	98.45	880	908
DT 24	100000	1400	160-250	242-410	620	350	408	272	50±1.2	116.15	964	1020
DT 25	125000	1300	180-280	242-470	660	385	445	292	50±1.2	163.85	1204	1251
DT 26	160000	1200	180-300	242-470	720	410	485	317	60±1.4	245.9	1507	1441
DT 27	200000	1150	220-300	282-470	740	420	503	322	60±1.4	275.08	1594	1550
DT 28	250000	1100	240-300	330-470	770	450	530	342	60±1.4	342.37	1807	1721
DT 29	315000	1050	250-340	330-550	820	490	559	372	60±1.4	514.91	2358	2025
DT 30	500000	760	280-360	380-550	875	520	575	419	50±1.6	628.63	2507	1915
DT 31	630000	715	300-400	380-650	935	560	610	464	60±1.9	980.83	3391	2280
DT 32	800000	650	320-420	380-650	1030	600	622	494	60±1.9	1368	3697	2370
DT 33	1000000	620	360-460	450-650	1080	660	660	510	66±2.2	1689	4450	2669
DT 34	1250000	576	400-500	540-650	1160	710	750	565	70±2.3	2645	5877	3446
DT 35	1600000	520	440-560	540-800	1290	820	820	620	82±2.6	4775	8550	4120
DT 36	2000000	475	480-600	540-800	1410	900	900	685	92±2.8	7620	11211	4962
