Metallic Disc Coupling - DX Type
Model Number: Suoda 15 DX 01
Key Specifications / Features
China Metallic Disc Coupling Manufacturer Suoda Supplies Metallic Disc Couplings, DX Type Disc Couplings with Single Halves, Anti-mounted Type.
Detail Information
| Type |
Nominal torque N.m |
Allowable speed rpm |
Diameter of axle hole |
Length of axle hole |

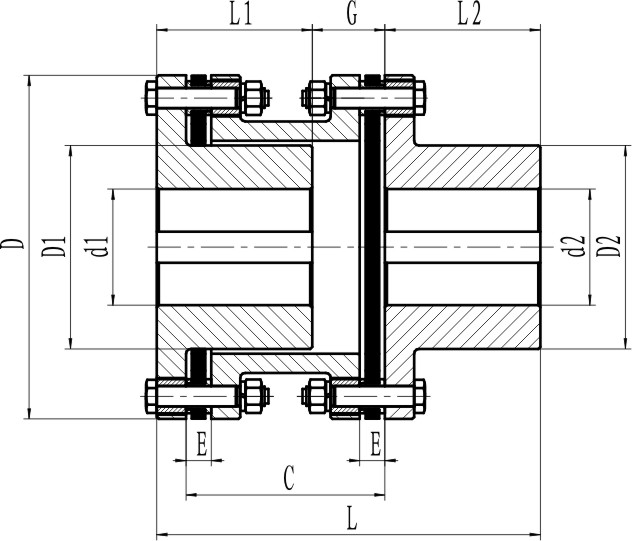

Main Dimension |
Moment of inertia kg·㎡ |
Radial misalignment |
Angular misalignment |
||||||
| d1/d2 | L1/L2 | D | L | D1 | D2 | C | E | G | ||||||
| DX1 | 6.3 | 5000 | 14/10 | 27/23 | 50 | 75 | 24 | 20 | 44 | 4 | 25 | 0.4 | 0.2 | 1° |
| DX2 | 10 | 4500 | 20/14 | 30/27 | 58 | 85 | 32 | 24 | 50 | 5 | 38 | 1 | 0.2 | 1° |
| DX3 | 16 | 4000 | 26/20 | 33/30 | 64 | 94 | 40 | 32 | 56 | 5 | 31 | 1.8 | 0.2 | 1° |
