Name: Double Flexing Grid Coupling - T50 Type
Brand: www.suodacoupling.com
SKU: Suoda 15 T50 01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Detail Information

Double Flexing Grid Coupling - T50 Type - China Suoda

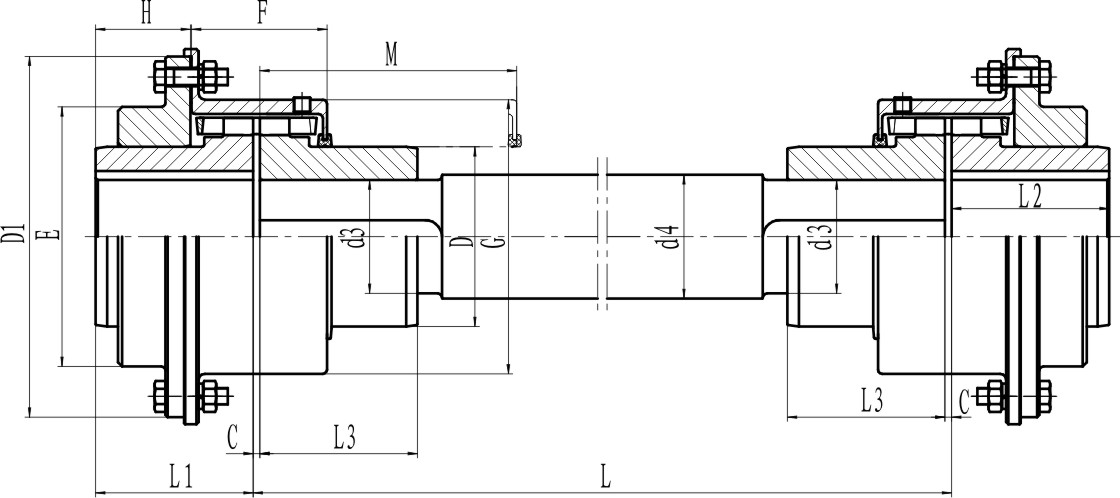

SIZE	NOMINAL TORQUE (Nm)	Bore		Pilot hub bore	Wt (Kg)	Grease Quantity (Kg)	D1	Lmin	L1,L2,L3	D	E	G	F	M	H	d3	d4	C
		max	min
1030T	150	35	13	27	3.90	0.041	116	162	48	49	84	81	50	78	27	27	28	3.2
1050T	435	48	13	37	8.85	0.068	157	195	60	67	105	105	59	94	36	37	38	3.2
1070T	990	64	19	49	15.60	0.113	183	213	76	87	126	129	65	103	50	49	51	3.2
1080T	2050	76	27	62	26.40	0.172	218	275	89	105	155	156	86	134	52	62	64	3.2
1090T	3700	89	27	75	37.19	0.254	245	294	99	124	180	176	92	144	58	75	76	3.2
1100T	6300	102	41	92	63.05	0.426	286	372	121	142	211	208	117	181	69	92	95	4.8
1110T	9300	114	41	102	83.46	0.508	324	391	127	160	245	229	122	191	74	102	105	4.8
1120T	13600	127	60	117	97.98	0.735	327	453	149	179	179	257	146	220	84	117	121	6.4
1130T	19800	152	67	133	140.16	0.907	365	463	162	217	217	295	149	225	95	133	137	6.4
1140T	28500	184	67	143	209.56	1.134	419	482	184	254	254	336	156	235	114	143	146	6.4
1150T	39700	203	108	162	276.69	1.950	478	549	183	271	269	391	177	268	102	162	165	6.4
1160T	55800	229	121	200	381.02	2.812	549	587	198	305	305	442	189	287	112	200	203	6.4
1170T	74500	254	133	200	518.91	3.493	605	622	216	356	356	494	201	305	124	200	203	6.4
1180T	10300	279	152	226	718.04	3.765	665	673	239	394	394	556	227	330	141	226	229	6.4
1190T	136000	305	152	251	897.66	4.400	709	711	259	437	437	599	242	350	157	251	254	6.4
1200T	186000	330	178	276	1205.19	5.625	782	744	279	498	498	663	252	366	173	276	279	6.4

Notes:
1. Materials of Cover: 1030-1100 round steel; 1110-1130 forgings; 1140-1200 steel plate or cast steel.
2. Max bore is equal to the size of flanged hub.
