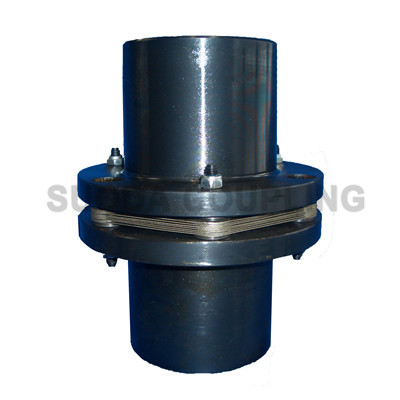

Close Coupled Disc Coupling - DXT Type
Key Specifications / Features
China Close Coupled Disc Coupling Manufacturer Suoda Offers Close Coupled Disc Couplings, DXT Type Disc Couplings, Good Reliability, Anti-corrosion.
Request a quote
Detail Information
| Type |
Nominal torque N.m |
Allowable speed rpm |
Diameter of axle hole |
Length of axle hole |

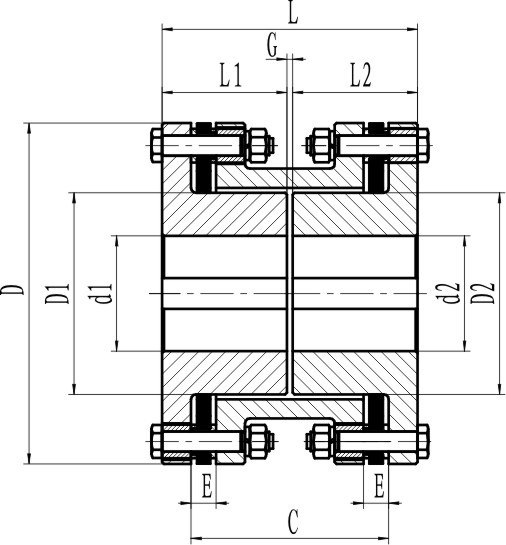

Main Dimension |
Moment of inertia |
Radial misalignment |
Angular misalignment |
||||||
| d1/d2 | L1/L2 | D | L | D1 | D2 | C | E | G | kg·㎡ | |||||
| DXT1 | 6.3 | 5000 | 10 | 23 | 50 | 52 | 20 | 20 | 44 | 4 | 6 | 0.4 | 0.2 | 1° |
| DXT2 | 10 | 4500 | 14 | 27 | 58 | 60 | 24 | 24 | 50 | 5 | 6 | 1 | 0.2 | 1° |
| DXT3 | 16 | 4000 | 20 | 30 | 64 | 66 | 32 | 32 | 56 | 5 | 6 | 1.8 | 0.2 | 1° |
