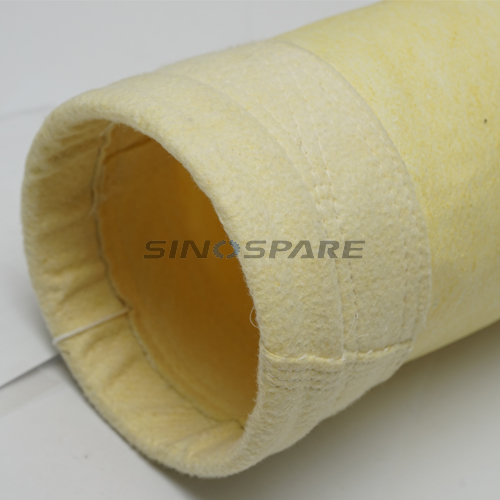

Fiberglass Filter Bag for Cement Plant

Name: Fiberglass Filter Bag for Cement Plant
SKU: FB-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China fiberglass filter bag supplier offers custom fiberglass filter bag for cement plant, high temperature & corrosion resistance, easy dust cleaning.

Request a quote

Detail Information

Fiberglass is an inorganic fiber which is obtained by drawing fiberglass silk from a glass molten state when melting a glass frit at a temperature of 1300 to 1600 °C and rapidly quenching. The density of fiberglass silk is 2.54 g/cm3, and the tensile strength of the raw yarn is 160 to 275 kg/mm2. Glass silk can be divided into A glass, C glass, E glass, and S glass according to the composition. The most prominent features of fiberglass are high-temperature resistance, good dimensional stability and high tensile strength at break. In terms of chemical resistance, fiberglass is stable to other media except for hydrofluoric acid and high-temperature alkali. The disadvantage of fiberglass is that it has poor folding resistance and is generally not used on an oscillating or pulse system.

SINOSPARE offers fiberglass filter cloth filter bag and fiberglass needled felt filter bags to the global market.

Fiberglass Filter Cloth Filter Bag with the advantages of high-temperature resistance, corrosion resistance, dimensional stability, extremely small elongation and contraction rate and high strength.

Fiberglass Needled Felt Filter Bags has more advantages with its three-dimensional microporous structure than Fiberglass cloth filter bags, such as high porosity and low resistance used in high-speed, high-efficiency,high-temperature gas filtration working condition. Compared with other high-temperature resistant fiber felts, it has special advantages such as low price and high-temperature resistance. However, its running resistance is higher than other general chemical fiber high-temperature filter materials, and the filtration precision is slightly lower.

FEATURES & BENEFITS
• High-Temperature Resistance, long service period with temperature＜280℃
• Strong Corrosion Resistance
• Good Dimensional Stability
• No Shrinkage at 280℃
• Good Chemical Stability, Acid and Alkali Resistance
• High Tensile Breaking Strength
• Easy Dust Cleaning

APPLICATIONS
Fiberglass filter bag can be widely used in high-temperature flue gas filtration of various industrial furnaces such as chemical industry, steel, metallurgy, carbon black, power generation and cement. It is suitable for various bag filters such as pulse cleaning and high-speed blowback cleaning.

SPECIFICATION

Filter Material	Weight (g/m2)	Structure （Fiber layer\Scrim）	Thickness(mm)	Air permeability （dm3/m2·s）	Tensile strength		Tensile elongation (%) (@200N/5cm)		Temperature (℃)		Burst Strength N/Ø2cm	Finishing Treatment
Filter Material	Weight (g/m2)	Structure （Fiber layer\Scrim）	Thickness(mm)	Air permeability （dm3/m2·s）	Warp	Weft	Warp	Weft	Work	Short Time	Burst Strength N/Ø2cm	Finishing Treatment
CWF 300	315	Tweed Weave	0.30±0.03	210~320	1176	980	＜5%	＜5%	260	280	650	Graphite/Silicone Oil/PTFE Coating
CWF 400	420	Tweed Weave	0.40±0.04	240~360	1450	1110	＜5%	＜5%	260	280	760
CWF 500	540	Satin Weave	0.50±0.05	280~390	1764	1470	＜5%	＜5%	260	280	870
CWF 600	620	Satin Weave	0.60±0.06	260~380	1820	1560	＜5%	＜5%	260	280	1020
EWF 300	315	Tweed Weave	0.30±0.03	180~320	1980	1560	＜5%	＜5%	260	280	700
EWF 400	420	Tweed Weave	0.40±0.04	160~300	2080	1790	＜5%	＜5%	260	280	820
EWF 500	540	Satin Weave	0.50±0.05	180~300	2254	2205	＜5%	＜5%	260	280	940
EWF 600	620	Satin Weave	0.60±0.06	190~310	2380	2380	＜5%	＜5%	260	280	1080
CWTF 500	480	Tweed Weave	0.50±0.05	220~330	1420	1136	＜5%	＜5%	260	280	780
CWTF 600	620	Tweed Weave	0.60±0.06	270~360	1680	1280	＜5%	＜5%	260	280	890
CWTF 700	720	Satin Weave	0.70±0.07	260~350	1820	1500	＜5%	＜5%	260	280	1070
CWTF 800	820	Satin Weave	0.80±0.08	250~340	1786	1160	＜5%	＜5%	260	280	1160
EWTF 500	480	Tweed Weave	0.50±0.05	250~360	1800	1200	＜5%	＜5%	260	280	820
EWTF 600	620	Tweed Weave	0.60±0.06	290~395	1920	1426	＜5%	＜5%	260	280	910
EWTF 700	720	Satin Weave	0.70±0.07	280~370	2150	1620	＜5%	＜5%	260	280	1110
EWTF 800	820	Satin Weave	0.80±0.08	260~360	2240	1840	＜5%	＜5%	260	280	1200
