Steel Structure Shot Blasting Machine, Paint Preparation

Name: Steel Structure Shot Blasting Machine, Paint Preparation
SKU: JX-RCS-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Steel Structure Shot Blasting Machine Manufacturer JX Offers Steel Structure Shot Blasting Machine, Paint Preparation For Steel Structure/Steel Profiles.

Request a quote

Detail Information

Characteristics

Roller Conveyor

Paint Preparation

Description

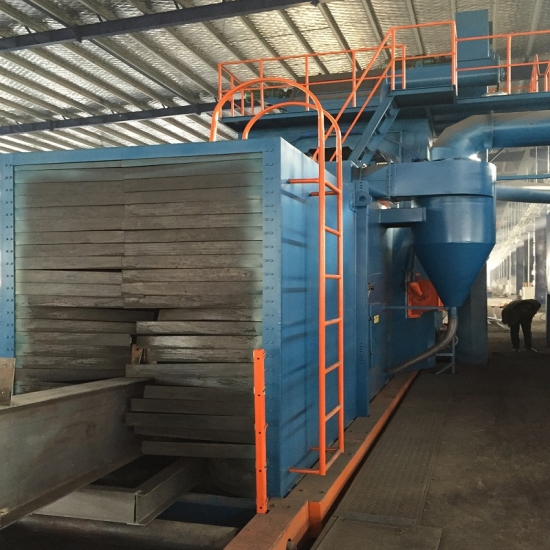

Structural Steel Shot Blasting Machine is used to remove scale, rust and paint from long and/or flat components.
The Structural Steel Shot Blasting Machine designed was fitted with our heavy-duty turbine system, which generates significant operating cost reductions due to faster throughput times, as well as reductions in shot-blasting media consumption and energy requirements.

Application
Rust and heat scale removal
Paint stripping
Surface texturing
Preparation for painting, bonding and plating
Deburring, deflashing
Cleaning

Details

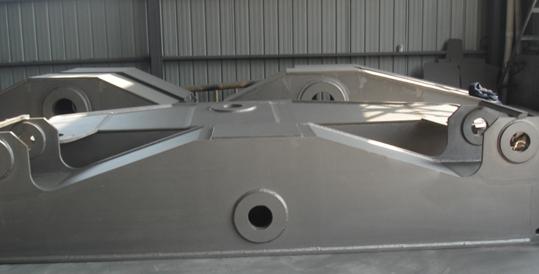

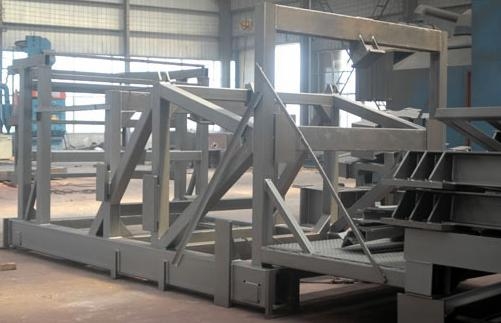

Steel Structure Shot Blasting Machine Details

1. Main Blast Cabinet with inspection Door
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit
4. Bucket Elevator unit
5. Abrasive Separation/Cleaning system with Storage Hopper
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.

Technology Parameter

Steel Structure Shot Blasting Machine
Parameter	Unit	DX0816	DX1018	DX1220	DX1520	DX2020	DX2025
The effective cleaning width	mm	800	1000	1200	1500	2000	2000
The room feed-in size	mm	1000x1750	1200*2000	1400*2200	1700*2200	2200*2200	2200*2700
The length of cleaning workpiece	mm	3000-15000	3000-15000	3000-15000	3000-15000	3000-15000	3000-15000
The speed of wheel conveyor	m/min	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
The thickness of cleaning steel sheet	mm	5-60	5-60	5-60	5-60	5-60	5-60
The width and height of workpiece	mm	800*1600	1000*1800	1200*2000	1500*2000	2000*2200	2000**2500
The quantity of shot blasting	Kg/min	8*180	8*240	8*240	12*240	12*240	12*240
The first enclosed quantity	Kg	4000	8000	8000	10000	15000	15000

This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
