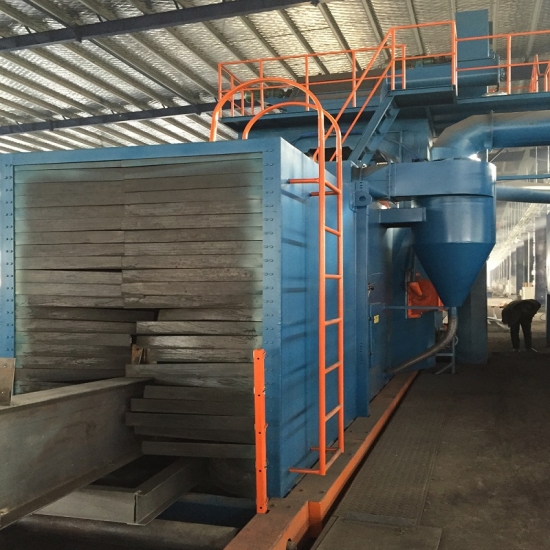

Roller Conveyor Shot Blasting Machine, Continuous

Description
JX Roller Conveyor Shot Blasting Machines are used in different fields such as steel structure works, pipes, profiles and plates which with continuous shot blasting capability and a motorized rolls conveyor. JX Roller Conveyor Shot Blasting Machine is to clean h beams, steel plates, sheets, strips, wires, bars, billets, slabs, rolled and fabricated structural shapes, and miscellaneous weldments, pipe, tubing and gas cylinders.Automatic loading and unloading, automatic blasting, automatic dust collection,automatic abrasive media reclaim system.

Application
Rust and heat scale removal, paint stripping, surface texturing, preparation for painting, bonding and plating,deburring, deflashing, cleaning, cosmetic finishing.

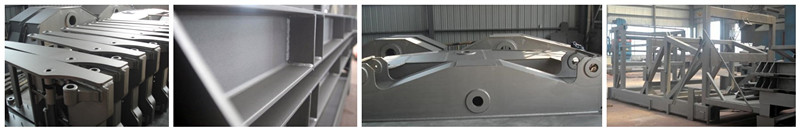

Details
1. Main blast cabinet with inspection door.
2. Blast wheel units with drive mechanism.
3. Abrasive circulation unit.
4. Bucket elevator unit.
5. Abrasive separation/cleaning system with storage hopper.
6. Dust collector with cleaning mechanism.
7. Roller conveyor system at inlet & outlet side.
8. Control panel with plc control system.
