Concrete Block Shot Blasting Machine

Name: Concrete Block Shot Blasting Machine
SKU: JX-CBS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Concrete Block Shot Blasting Machine Manufacturer JX Offers Concrete Block Shot Blasting Machine For Surface Roughening Treatment Of Concrete Blocks.

Request a quote

Detail Information

Characteristics

Efficiently

High quality

Cost Effectively

Description

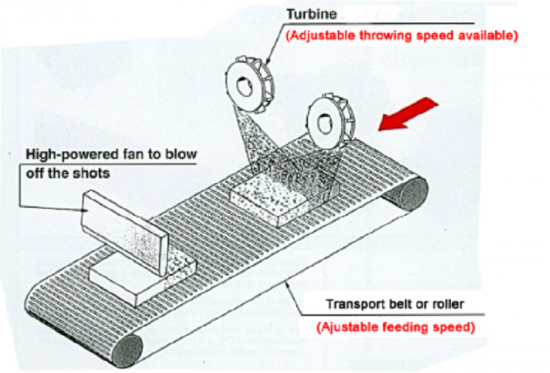

The working principle of Concrete Block Shot Blasting Machine: different sized abrasive, thrown by the rapidly rotating blast wheel, is accelerated towards the surface being prepared.

Application
Concrete block shot blast machine is mainly used for surface roughening treatment of marbles, granites, concrete blocks, whose blast process creates a unique character of blocks. JX Concrete block blast shot machines perform efficiently and offers high quality blasting with low cost.

Details

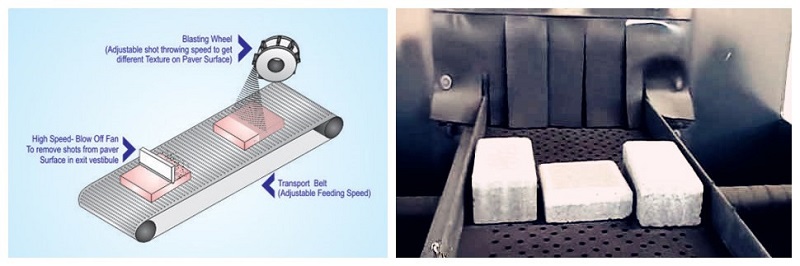

Concrete Block Shot Blasting Machine Details

Technical Parameters

Stone and Ceramic Shot Blasting Machines
Model		DXSC-300	DXSC-800	DXSC-1000
Max.cleaning dimension(width*height)(mm)		300*300	800*200	1000*200
Passing speed(m/min)		0.5-6	0.5-6	0.5-6
Blast wheel	Model	DX034-I	DX034-I	DX034-I
Blast wheel	Power(kw)	2*11	2*11	2*11
Dust collecting system	Total ventilation capacity(m3/h)	7000	10000	10000
Dust collecting system	Power(kw)	7.5	11	11
Total power(kw)		43.4	46.9	47.7
