Air Blast Chamber, Air Blasting Room

Characteristics

Dust collection

Abrasive recovery

Abrasives recycling

Blasting

Description

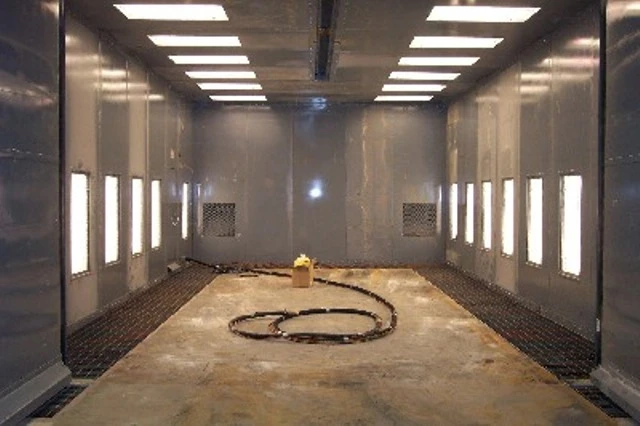

Air Blast Chamber/Air Blasting Room: the operator is inside the room during the blasting process. A protective suit and a helmet protect the operator from abrasive impact, and a fresh air supply provides sufficient ventilation through the blaster's helmet.

Application
Air Blast Chamber / Air Blasting Room can deal with any type of abrasive material, such as carbon steel grit, stainless steel grit, micro glass spheres, aluminum oxide, plastic abrasive materials, etc.

Details


Technical Parameters

Robotic Air Blasting System with Belt Conveyor
No.	Model	Size of room	Size of jobs	Spray gun quantity
1	DX-0606-M1	6000×6000×5000mm	3000×3000×2500mm	2
2	DX-0606-M2	6000×6000×6000mm	3000×3000×3500mm	2
3	DX-0806-M1	8000×6000×5000mm	5000×3000×2500mm	2
4	DX-0806-M2	8000×6000×6000mm	5000×3000×3500mm	2
5	DX-1006-M2	10000×6000×6000mm	7000×3000×3500mm	2
6	DX-1506-M2	15000×6000×6000mm	12000×3000×3500mm	2
7	DX-1508-M2	15000×8000×6000mm	12000×5000×3500mm	2
8	DX-1808-M2	18000×8000×6000mm	15000×5000×3500mm	4
9	DX-0806-M3	18000×10000×8000mm	15000×7000×5500mm	4

Above size of blasting room is for customers' reference. When you have different requirements, please let us know the size of blasting jobs, size of blasting room and quantity of spray guns, we can design blasting room according to your requirements.
