Water Ring Vacuum Pump, Single-stage, 27 m3/h - 500 m3/h

Overview
A 2BV series water ring vacuum pump is suitable for pump air with water vapor, inspiratory pressure can reach 33mbar absolute pressure (97% vacuum degree). When the pump works under the inspiratory pressure closed to limit vacuum (work fluid saturation vapor pressure) for a long time, it should be connected to a cavitation protecting tube, in order to protect the pump. When working as the compressor, the greatest pressure is up to 0.26 MPa (absolute pressure).

As a new generation energy-saving product, with its excellent performance and numerous advantages, 2BV series water ring vacuum pumps will fully replace SK, 2SK series water ring vacuum pumps and W, WY, WL series reciprocating pumps.

Main Features
1. Direct coupling design, save space, easy to install and convenient maintenance.
2. All equipped with cavitation protection tube, if works under limit work pressure, open cavitation protection tube (or with separator connection) can maximum guarantee inspiratory effect under the condition of cavitation, and protect the pump.

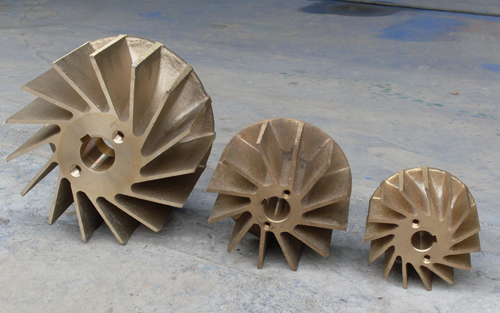

3. 2BV series can be equipped with stainless steel impeller, high strength and durability, and improves the corrosion resistance of the pump.
4. Unique flexible air outlet design, won't produce over compression, ensure its performance efficiency is the best.
5. All adopt Y2 series motor, IP54\IP55 protection (ordinary, IP44), insulation class F (ordinary is class B insulation).
6. The flexible seal can be completely PTFE, which can greatly extend pump service life under harsh conditions.






Code	Model	Max. Capacity		Limit Pre. mbar(MPa)	Power kW	Ex. Grade	Protect. G	Speed r. p. m	Water Flow L/min	dB(A)	W( kg)
		m3/min	m3/h
60V	2BV2 060	0.45	27	33mbar (-0.098MPa)	0.81	N/A	IP54	2840	2	62	31
61V	2BV2 061	0.86	52		1.45			2840	2	65	35
70V	2BV2 070	1.33	80		2.35			2860	2.5	66	56
71V	2BV2 071	1.83	110		3.85			2880	4.2	72	65
60V	2BV2 060-Ex	0.45	27		1.1	dIIBT4	IP55	2840	2	62	39
61V	2BV2 061-Ex	0.86	52		1.5			2840	2	65	45
70V	2BV2 070-Ex	1.33	80		3			2860	2.5	66	66
71V	2BV2 071-Ex	1.83	110		4			2880	4.2	72	77
110V	2BV5 110	2.75	165		4	N/A	IP54	1440	6.7	63	103
111V	2BV5 111	3.83	230		5.5			1440	8.3	68	117
121V	2BV5 121	4.66	280		7.5			1440	10	69	149
131V	2BV5 131	6.66	400		11			1460	15	73	205
161V	2BV5 161	8.33	500		15			970	20	74	331
110V	2BV6 110	2.75	165		4	dIIBT4	IP55	1440	6.7	63	153
111V	2BV6 111	3.83	230		5.5			1440	8.3	68	208
121V	2BV6 121	4.66	280		7.5			1440	10	69	240
131V	2BV6 131	6.66	400		11			1460	15	73	320
161V	2BV6 161	8.33	500		15			970	20	74	446
