Wafer Triple-eccentric Butterfly Valve, 1.0 / 1.6 Mpa

Wafer Triple-eccentric Butterfly Valve, 1.0 / 1.6 Mpa

Key Specifications / Features

China Triple-eccentric Butterfly Valve Manufacturer Shinjo Supplies Wafer Triple-eccentric Butterfly Valve, 1.0/1.6 Mpa, Size from DN50 to DN1400 mm.
Triple Eccentric Butterfly Valve DN1400 Butterfly Valve
Share:

Detail Information

Specifications:

Butterfly Valve type: Triple Eccentric
Body material: Cast Steel
Size: DN50 to DN1400 mm
Pressure  : 1.0 Mpa, 1.6 Mpa
End connection: Wafer


Product Range:

Body Material: Stainless Steel, Carbon Steel, Bronze C95800, Alloy Steel, Titanium, 904l, Cast Steel.
Normal diameter: 2"~80" (DN50~DN2000).
End connection: Flanged, Butt Welded, Wafer, Lugged
Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, 150LB, 300LB, 600LB
Flange standard : EN 1092-1, JIS, DIN, ANSI

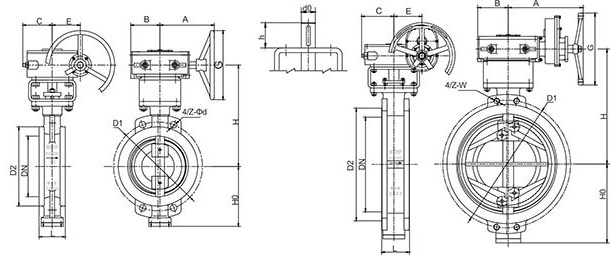

Wafer Triple-eccentric Butterfly Valve Structure Drawing:

Wafer Triple-eccentric Butterfly Valve Structure Drawing

PN10 Dimensions Table:
DN L Flange Dimensions Dimensions Top Flange Weight
D1 D2 Z-Φd（W） H0 H A B C E G ISO 5211 d0 h （kg）
80 64 160 138 8-Φ18(M16) 105 215 144 56 56 50 180 F07 16 35 15
100 64 180 158 8-Φ18(M16) 117 225 144 56 56 50 180 F07 18 40 17
125 70 210 188 8-Φ18(M16) 135 290 200 75 96 63 300 F10 22 45 24.5
150 76 240 212 8-Φ22(M20) 165 315 200 75 96 63 300 F10 25 50 30
200 89 295 268 8-Φ22(M20) 200 360 230 90 120 80 350 F12 30 60 45
250 114 350 320 12-Φ22(M20) 235 395 230 90 120 80 350 F12 35 70 63
300 114 400 378 12-Φ22(M20) 265 425 260 152 165 125 400 F14 40 80 82
350 127 460 438 16-M20 300 480 260 152 165 125 400 F14 45 90 140
400 140 515 490 16-M24 330 505 260 152 165 125 400 F16 50 100 170
450 152 565 550 20-M24 360 540 260 152 165 125 400 F16 50 100 196
500 152 620 610 20-M24 400 575 290 180 198 160 500 F25 55 110 280
600 154 725 725 20-M27 454 685 290 180 198 160 500 F25 60 120 362
700 165 840 795 24-M27 545 755 418 200 215 200 600 F25 70 130 430
800 190 950 900 24-M30 575 825 418 200 215 200 600 F30 80 130 535
900 203 1050 1000 28-M30 655 960 510 235 270 263 700 F30 90 160 708
1000 216 1160 1115 28-M33 725 1015 510 235 270 263 700 F30 100 170 1090
1200 254 1380 1330 32-M36 860 1150 550 275 335 333 800 F35 120 190 1455
1400 279 1590 1530 36-M39 995 1345 550 275 335 333 800 F35 140 200 1750

PN16 Dimensions Table:
DN L Flange Dimensions Dimensions Top Flange Weight（kg）
D1 D2 Z-Φd（W） H0 H A B C E G ISO 5211 d0 h
80 64 160 138 8-Φ18(M16) 105 215 144 56 56 50 180 F07 16 35 15
100 64 180 158 8-Φ18(M16) 117 225 144 56 56 50 180 F07 18 40 17
125 70 210 188 8-Φ18(M16) 135 290 200 75 96 63 300 F10 22 45 24.5
150 76 240 212 8-Φ22(M20) 165 315 200 75 96 63 300 F10 25 50 30
200 89 295 268 12-Φ22(M20) 200 360 230 90 120 80 350 F12 30 60 45
250 114 355 320 12-Φ26(M24) 235 395 230 90 120 80 350 F12 35 70 63
300 114 410 378 12-Φ26(M24) 265 425 260 152 165 125 400 F14 40 80 82
350 127 470 438 16-M24 300 480 260 152 165 125 400 F14 45 90 140
400 140 525 490 16- M27 330 505 260 152 165 125 400 F16 50 100 170
450 152 585 550 20- M27 360 540 260 152 165 125 400 F16 50 100 196
500 152 650 610 20- M30 400 575 290 180 198 160 500 F25 55 110 280
600 154 770 725 20- M33 454 685 418 200 215 200 600 F25 70 130 362
700 165 840 795 24- M33 545 755 418 200 215 200 600 F30 80 130 430
800 190 950 900 24- M36 575 825 510 235 270 263 700 F30 90 160 535
900 203 1050 1000 28- M36 655 960 510 235 270 263 700 F30 100 170 708
1000 216 1170 1115 28- M39 725 1015 510 235 270 263 700 F35 110 170 1090
1200 254 1390 1330 32- M45 860 1150 550 275 335 333 800 F35 130 200 1455
1400 279 1590 1530 36- M45 995 1345 550 275 335 333 800 F40 150 200 1750

Supplier Information

Shanghai Shinjo Valve Co., Ltd.

Verified Supplier

5A Floor, No 789, Wanhangdu Road, Jingan District, Shanghai, China.
Est. 2016

Certifications:

ISO 9001
View Contact
Allen Wang
Allen Wang
sh*******02
I graduated with a degree in Mechanical Design and began my career in 2012 as a QC engineer in the workshop. I worked my way up through CAD engineering and eventually served as Chief Technical Engineer. I joined Shinjo Co in 2016 and have since focused on control valves and a wide range of challenging process conditions, supporting numerous overseas clients with demanding applications. Over the years, I have come to believe that quality and solution capability are what ultimately maximize value — for both the client and the company. We welcome complex and unconventional cases. I hope my industry experience can be of help to you.
622 article(s)
Previous Product
DN25 PN63 Angle Globe Valve, ASTM A182 F316, EN ISO 15761
Next Product

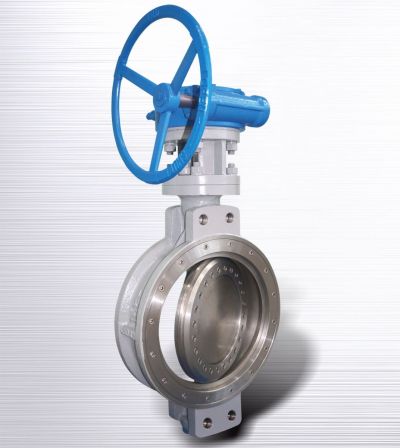

Metal Seat Wafer Ends Butterfly Valve, PN25/40
