Pressure Balanced Plug Valve, Class 150, 300, 600, 900 LB

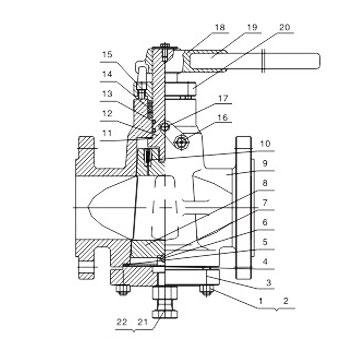

Parts & Material:
1. Bolt: ASTM A193-B7, A320-B8, A193-B8M.
2. Nut: ASTM A194-2H, A194-8, A194-8M.
3. Cover: ASTMA216-WCB, A217-WC1, WC6, WC9, C5, C351-CF8, CF8M, CF3, CF3M.
4. Metal Diaphragm: ASTM SS304, 304L, 316, 316L.
5. Wind Gasket: Flexible Graphite + Stainless Steel.
6. Set for Ball: ASTM A276 410, A276 304, 304L, 316, 316L.
7. Ball: ASTM SS304, 304L, 316, 316L.
8. Plug: ASTM A217CA15, A182F6a, A351 CF8, CF8M, CF3, CF3M.
9. Body: ASTM A216-WCB, A217-WC1, WC6, WC9, C5, C351-CF8, CF8M, CF3, CF3M.
10. Check Valve: UCA.
11. Gasket: PTFE.
12. Stem: ASTM A182 F6a, A182 F304, F316, F304L, F316L.
13. Ring: Viton.
14. Bolt: ASTM A193-B7. A320-B8, A193-B8M.
15. Packing: Flexible Graphite.
16. Grease Nozzle: UCA.
17. Nozzle: UCA.
18. Hand hole: ASTM A216-WC6.
19. Pipe: ASTM A570.
20. Gland: ASTM A216-WCB, A217-WC1, WC6, WC9, C5, A351-CF8.
21. Lock Nut: ASTM A194-2H, A194-8, A194-8M.
22. Adjusting Bolt: ASTM A193-B7, A320-B8, A193-B8M.

Operation	Manual
	Electric Actuator
Design Standard	API 599, API 6D
Face to Face	ASME B16.10
Flange Ends	ASME B16.5
Test & Inspection	API598 API 60



Nominal Pressure	Shell Test	Sealing Test	Suitable Temp.	Fluids
150	3.0	2.2	≤300°C	Water Oil & Gas
300	7.5	5.5
600	15.0	11.0
900	22.5	16.5

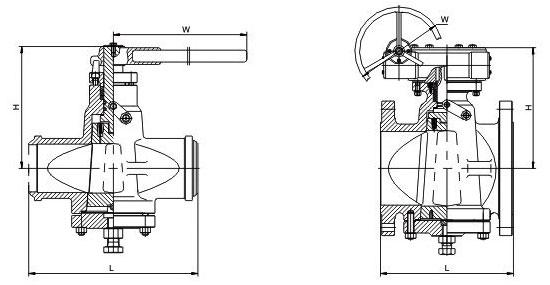

Dimensions and Weights:




Pressure		150 Lbs
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L-RF		108	117	127	140	165	178	190	203	229	245	267	292	330	356	381
L-BW		152	178	203	216	229	267	305	330	356	381	394	457	533	610	686
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight (Kg)		10	12	14	17	19	21	29	33	48	75	98	125	171	230	370



Pressure		300 Lbs
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L-RF		140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
L-BW		152	178	203	216	229	267	305	330	356	381	457	521	550	635	762
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	600	600	820	1000	1000	300	300	320	320	350	380	380
Weight (Kg)		12	14	16	19	21	24	31	36	61	86	130	190	255	380	560

Pressure		600 Lbs
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L-RF.BW		165	190	216	229	214	292	330	356	432	508	559	660	787	838	889
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	600	820	1000	1000	300	300	320	320	350	380	380
Weight (Kg)		14	16	18	20	24	29	35	47	91	129	210	320	660	920	1250

Pressure		900 Lbs
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L-RF.BW		229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	600	820	1000	1000	300	300	320	320	350	380	380
Weight (Kg)		17	29	21	24	30	37	44	65	110	160	255	.380	810	1050	1460
