Precision Plunger Metering Pump, 2lph-234lph, 10Bar-400Bar, 0.37kW
Model Number: SJ-MP-07
Key Specifications / Features
China Precision Metering Pump Producer Supplies Precision Plunger Metering Pump, Piston Metering Pump, 2 lph-234 lph, 10 Bar-400 Bar, 0.37 kW, 0.5 HP.
Contact Supplier
Detail Information
Precision Plunger Metering Pump
Capacity range 2-195lph, 10-400bar
Features:
1. Flow rate can be adjusted via unique adjusting mechanism from 0-100%.
2. The adjustment can be carried when pump is in operation or at stop.
3.The steady accuracy is ±1% from 30%-100% of the maximum output.
4. Automatic operation is achieved by variable speed drive.
5. Special application for high temperature or low temperature is available with cooling jacket or heating jacket.
Materials:
1. Pump head: SS304, SS316
2. Pump case: Cast iron
3. Plunger: Ceramic or SS316 coated with ceramic
4. Packing seal: PTFE and SS316 ring
5. Valve: SS304, SS316
6. Valve ball: SS304, SS316, ceramic
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter Table:
Installation Drawing:
Capacity range 2-195lph, 10-400bar
JSX series are plunger/piston type positive displacement, reciprocating metering pumps with high performance and accuracy dosing features. The plunger makes harmonic push and pull motion by the crankshaft. It is widely used in industries such as oil and gas, chemical or petrochemical, foaming, electricity, boiler, etc.
Features:
1. Flow rate can be adjusted via unique adjusting mechanism from 0-100%.
2. The adjustment can be carried when pump is in operation or at stop.
3.The steady accuracy is ±1% from 30%-100% of the maximum output.
4. Automatic operation is achieved by variable speed drive.
5. Special application for high temperature or low temperature is available with cooling jacket or heating jacket.
Materials:
1. Pump head: SS304, SS316
2. Pump case: Cast iron
3. Plunger: Ceramic or SS316 coated with ceramic
4. Packing seal: PTFE and SS316 ring
5. Valve: SS304, SS316
6. Valve ball: SS304, SS316, ceramic
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter Table:
| Model | 50Hz | 60 Hz | Pressure | Plunger Dia. (mm) |
Stroke Length (mm) |
Power kW(HP) |
Inlet&Outlet Size | Connection Size | |||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | ||||||
| JSX 2/40 | 2 | 0.5 | 80 | 0.6 | 2.4 | 96 | 400 | 5800 | 6 | 20 | 0.37 (0.5) |
DN6 | DN15 (union for welding ) |
| JSX 3/32 | 3 | 0.8 | 1.0 | 3.6 | 320 | 4640 | 8 | ||||||
| JSX 5/20 | 5 | 1.3 | 1.6 | 6.0 | 200 | 2900 | 10 | ||||||
| JSX 8/14 | 8 | 2.1 | 2.5 | 9.6 | 140 | 2030 | 12 | ||||||
| JSX 15/7.6 | 15 | 4.0 | 4.8 | 18 | 76 | 1102 | 16 | ||||||
| JSX 25/5.0 | 25 | 6.6 | 7.9 | 30 | 50 | 725 | 20 | ||||||
| JSX 40/3.2 | 40 | 11 | 13 | 48 | 32 | 464 | 25 | DN10 | |||||
| JSX 50/2.5 | 50 | 13 | 16 | 60 | 25 | 363 | 28 | ||||||
| JSX 70/2.0 | 70 | 18 | 22 | 84 | 20 | 290 | 32 | ||||||
| JSX 85/1.6 | 85 | 22 | 27 | 102 | 16 | 232 | 35 | ||||||
| JSX 100/1.3 | 100 | 26 | 32 | 120 | 13 | 189 | 38 | ||||||
| JSX 125/1.0 | 125 | 33 | 40 | 150 | 10 | 145 | 42 | ||||||
| JSX 150/1.3 | 150 | 40 | 120 | 48 | 180 | 144 | 13 | 189 | 38 | ||||
| JSX 200/1.0 | 195 | 52 | 62 | 234 | 10 | 145 | 42 | ||||||

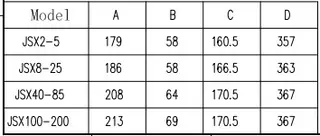

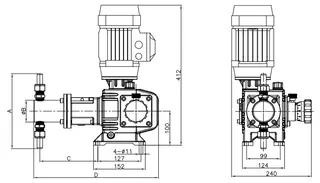

Installation Drawing:
