Power Station Pressure Seal Swing Check Valve, WCB, WC1, WC6, WC9
Model Number: SJ-CV-18
Key Specifications / Features
China Power Station Pressure Seal Swing Check Valve Manufacturer Shinjo Supplies Power Station Pressure Seal Swing Check Valve, WCB, WC1, WC6, WC9.
Detail Information
Power station swing Check Valves are suitable for Class 1500 - 2500 lb, working temperature -29 - 570 °C in the petroleum, chemical, thermal power plant under various working conditions such as the pipeline.
Materials
| Name | Materials | |||
| Body | WCB | WC1 | WC6 | WC9 |
| Seat | 25 | 15CrMoA | 12Cr1MoVA | |
| Disc | WCB | WC1 | WC6 | WC9 |
| Hinge | WCB | WC1 | WC6 | WC9 |
| Bonnet | 25 | 15CrMoA | 12Cr1MoVA | |
| Sealing Ring | 1Cr17Ni2 | 20CrMo1VA | ||
| Sealing Ring | S Mild Steel (Reinforced Flexible Graphite) |
S Mild Steel | F Mild Steel | |
Dimensions & Weights of H64Y-1500 Lb H64Y-250/P55140V
| Nominal Diameter (in.) |
Size (mm) | ||

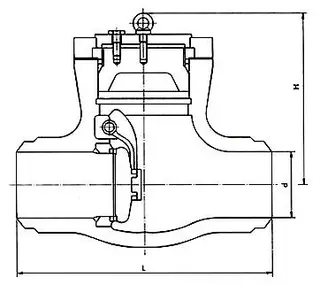

| d | L | H | |
| 2 1/2 | 56 | 254 | 282 |
| 3 | 64 | 325 | 300 |
| 4 | 84 | 406 | 350 |
| 5 | 100 | 483 | 425 |
| 6 | 126 | 559 | 400 |
| 8 | 158 | 711 | 490 |
| 10 | 200 | 864 | 540 |
| 12 | 250 | 991 | 650 |
| 14 | 280 | 1067 | 710 |
Dimensions & Weights of H64Y-2000Lb H64Y-320/P55170V
| Nominal Diameter (in.) |
Size (mm) | ||
| d | L | H | |
| 2 1/2 | 50 | 330 | 240 |
| 3 | 60 | 368 | 305 |
| 4 | 80 | 457 | 315 |
| 5 | 96 | 533 | 409 |
| 6 | 118 | 610 | 465 |
| 8 | 147 | 762 | 528 |
| 10 | 180 | 914 | 613 |
| 12 | 222 | 1041 | 680 |
| 14 | 254 | 1118 | 745 |
Dimensions & Weights of H64Y-2500Lb H64Y-420/P55250V
| Nominal Diameter (in.) |
Size (mm) | ||
| d | L | H | |
| 3 | 54 | 368 | 297 |
| 4 | 70 | 457 | 385 |
| 5 | 86 | 533 | 410 |
| 6 | 104 | 610 | 455 |
| 8 | 130 | 762 | 557 |
| 10 | 162 | 914 | 615 |
| 12 | 210 | 1041 | 715 |
| 14 | 234 | 1118 | 790 |
| 16 | 264 | 1245 | 815 |
| 18 | 304 | 1397 | 815 |
