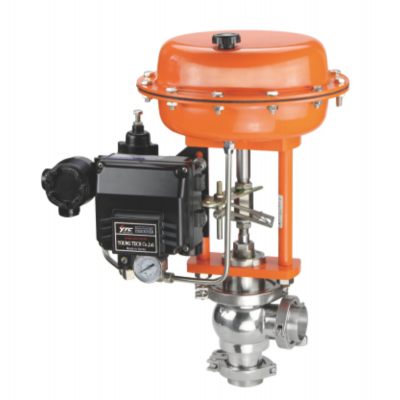

Pneumatic sanitary control valve description
Pneumatic sanitary control valve apply for high sanitary technics process of strictly control flow and pressure. And use filing system of measurement, mixture and metage. Pneumatic sanitary control valve is Mainly for dairy, beverage, food, biology, pharmacy and cosmetic, etc. -
Pneumatic sanitary control valve Specification
Metal material
Contact Product Part
304/316L(1.4404)
No-contact Product Part
304/316L(1.4301)
Provide EN 10204.3.1B certificate
Sealing Material
Standard
PTFE
Option
Body, STL
All Seal material coply with FDA 177.2800
Temperature
Working Temperature
-29°C~150°C(EPDM)
Sterilization Temperature
150°C(Max 20Min)
Pressure
Working Pressure
0~5 Bar(standard)
Accepting High Pressure Requirement
Control Air Pressure
5~8 Bar
Surface Treatment
Internal Surface
Ra ≤ 0.6um
External Surface
Standblasting
Connection
Connection Standard
Welded End: DIN 11850 series 2
Welded End: INCH Ripe standard
Connection: Weld, Thread, Clamp, Flange
-

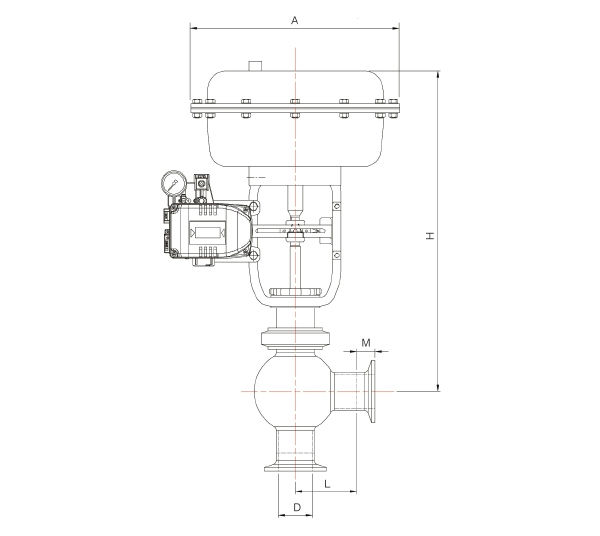

Pneumatic sanitary control valve structure
-
Pneumatic sanitary control valve dimension (unit:mm)
Size
L
D
A
H
M
DIN
3A
DIN
3A
DN40
1-1/2”
65
41X1.5
38.1X1.65
281
500
21.5
12.7
DN50
2”
75
53X1.5
50.8X1.65
281
500
21.5
12.7
DN65
2-1/2”
90
70X2.0
63.5X1.65
363
630
28
12.7
DN80
3”
110
85X2.0
76.2X1.65
363
635
28
12.7
DN100
4”
120
104X2.0
101.6X2.11
520
890
28
15.8
