Flanged Pressure Seal Check Valves, Class 900, 1500, 2500 LB

Features

Pressure Seal
Swing Type Disc
Type 1 Standard
Type 2 Optional
With Eye Bolt
By Pass on Request
Lever & Weight Optional

Specifications
Design: ASME B16.34
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75

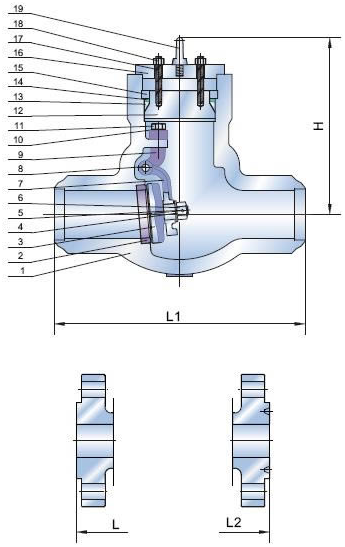

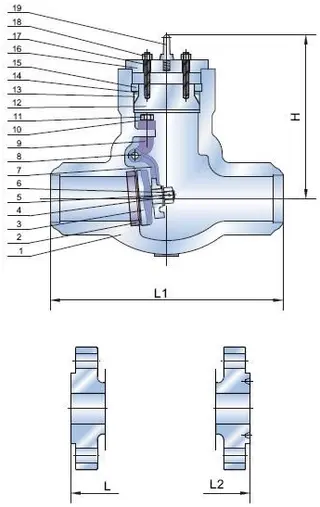

Flanged Pressure Seal Check Valve Structure
Materials
No. Parts Materials
1 Body ASTM A216 GR.WCB
2 Disc ASTM A105 + Setllite Faced
3 Disc Washer ASTM A276 Type 410
4 Disc Nut ASTM A276 Type 410
5 Disc Nut Pin Stainless Steel
6 Disc Nut Stainless Steel
7 Hinge ASTM A216 GR.WCB
8 Hinge Pin ASTM A182 GR.F6
9 Bearing Bracket ASTM A216 GR.WCB
10 Spring Washer Carbon Steel
11 Hex, Bolt Carbon Steel
12 Bonnet ASTM A216 GR.WCB
13 Gasket ASTM A182 GR.F304
14 Thrust Ring ASTM A276 Type 410
15 Separate Ring ASTM A276 Type 410
16 Cover ASTM A216 GR.WCB
17 Cover Bolts ASTM A193 GR.B7
18 Cover Bolt Nuts ASTM A194 GR.2H
19 Eye Bolt Carbon Steel

ASME Pressure Class 900 Lb-Dimensions and Weights
Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20
L-L2 mm 292 330 355 431 508 558 660 787 838 889 991 1092 1194
L-L1 mm 178 216 245 304 381 457 584 711 812 889 991 1092 1194
H mm 240 265 275 325 370 425 500 555 610 725 755 850 925
W Kg 20 38 45 45 95 125 220 330 505 595 800 1150 1600

ASME Pressure Class 1500 Lb-Dimensions and Weights
Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18
L-L2 mm 368 419 381 457 559 609 736 838 965 1029 1130 1219
L-L1 mm 368 254 305 355 432 508 660 787 914 991 1092 1219
H mm 250 580 290 335 380 440 510 570 620 730 790 860
W Kg 44 57 75 105 140 230 440 590 870 1085 1225 1700

ASME Pressure Class 2500 Lb-Dimensions and Weights
Size inch 2 2-1/2 3 4 5 6 8 10 12
L-L2 mm 451 508 578 673 794 914 1022 1270 1422
L-L1 mm 279 330 368 457 533 610 762 914 1014
H mm 280 310 325 370 425 500 525 630 695
W Kg 78 95 110 205 395 495 900 1300 1950
