Electric Actuated Knife Gate Valve, Stainless Steel, Duplex Stainless Steel, 904L, Titanium
Key Specifications / Features
Detail Information
PZ943 Electric Actuated Knife Gate Valve is one kind of knife gate valve for slurry service, knife gate valve can used to slice through slurry, mud or sewerage, electric knife gate valve is used fro-normal positive shut off. Electric knife gate valve is a gate valve design that is distinguished from the standard design by the use of a simple metal plate for the knife gate and the absence of a bonnet; also called a electric knife gate valve.
Electric knife gate valve and slurry knife gate valve is a uni-directional or bi-directional valve designed for general industrial service applications. Electric knife gate valve used for pressure tight isolation of solid-liquid mixes in water and waste water treatment plants and pumping stations, paper and pulp plants, power plants and mining industry.
Specification
| Nominal Diameter | DN50-DN600 | ||
| Nominal Pressure | PN0.6MPa~1.6MPa | ||
Working Temperature |
Rubber≤80℃ | ||
| H/Y≤425℃ | |||
Test Pressure |
Shell: 1.5MPa -2.4MPa | ||
| Seal: 1.1MPa - 1.8MPa | |||
| Medium | Pulp, Sewage, Coal Slurry, Ash, Syrup, Slag and other mixtures | ||
Material
| Parts Name | Material | ||
| Bonnet | SS Steel, Carbon Steel, Gray Cast Iron | ||
| Disc | SS Steel, Carbon Steel | ||
| Stem | Stainless steel | ||
| Sealing Surface | Rubber, PTFE, Stainless steel, Hard alloy | ||

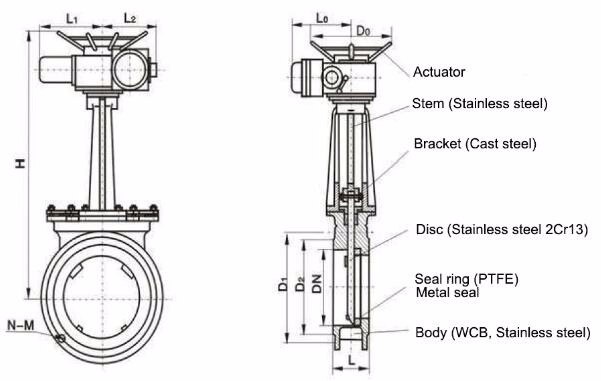

Structure
