Features of Ductile iron double eccentric butterfly valve D342X

1. The bidirectional flow double flange hard seal butterfly valve is a newly designed patented product.  It is the first application in China.
2. With the advance of Short length, small size, simple structure, high precision seal.
3. Double curve designed sealing surface. Once valve opened, sealing surface serperated, once valve closed, valve sealed. Low opening torque, easy to open and close.
4. This valve can withstand high back pressure, to avoid medium back-flow, play a role of check valve. Suitable to be installed at the exit of pump.
5. The sealing surface adopts alloy steel, stainless steel, hard alloy, with the capacity of anti abrasive. Long Service life.
6. Resistant to high temperature and pressure, anti-corrosion

7. Manual, Pneumatic, Electric and hydraulic actuator available.

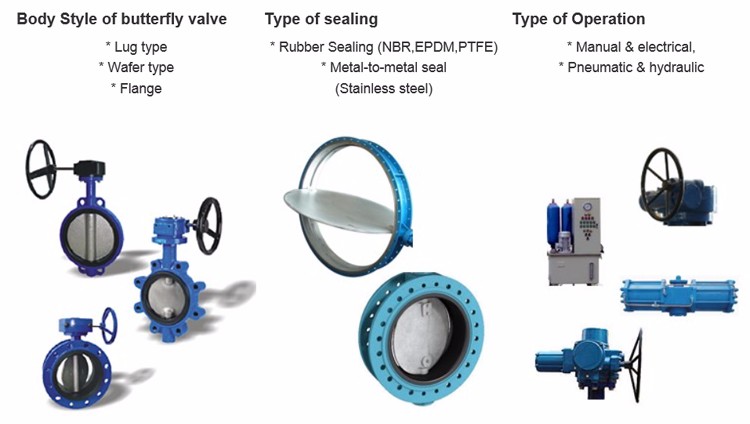

Butterfly valve



Main Technical Parameters

Nominal Diameter

DN100-2800
Nominal Pressure 0.6MPa 1.0MPa 1.6MPa 2.5MPa 4.0MPa 6.4MPa 10.0MPa
Strength Test Pressure 0.9MPa 1.5MPa 2.4MPa 3.8MPa 6.0MPa 9.6MPa 15.0MPa
Seal Test Pressure 0.66MPa 1.1MPa 1.76MPa 2.75MPa 4.4MPa 7.04MPa 11.0MPa
Temperature

-196℃--650℃
Medium

Water，Air, Smoke, Steam, Gas, Oil, Weak acid and alkali
Actuator

Manual, Electric, Pneumatic, Hydraulic,etc

Material

Body Disc Stem Sealing Surface Stem Sleeve Stem Seal Packing

Q235-A / 0Cr19Ni9 / QT450-10

 Q235-A / 0Cr19Ni9 / QT450-10 1Cr17Ni2 Stainless Steel SJ-1 / ZCuZn38Mn2Pb2 Graphite

Pressure And Temperature

Body & Disc Material

 Max Temp. ＜20℃ 100℃ 150℃ 200℃ 250℃
Nominal Pressure

Max Working Pressure （MPa）

QT450-10

Q235-A



 0.25 0.25 0.25 0.225 0.20 0.175
0.6 0.6 0.6 0.54 0.48 0.42
1.0 1.0 1.0 0.9 0.8 0.7
1.6 1.6 1.6 1.44 1.28 1.12
2.5 2.5 2.5 2.25 2.0 1.75

Stainless

Steel

 0.25 0.238 0.215 0.201 0.189 0.177
0.6 0.57 0.52 0.48 0.45 0.42
1.0 0.95 0.86 0.81 0.76 0.71
1.6 1.52 1.31 1.29 1.21 1.13
2.5 2.38 2.15 2.01 1.89 1.77

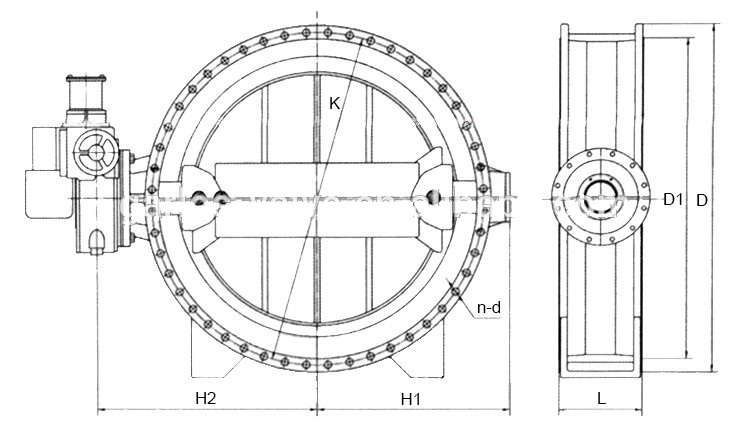

Ductile iron double eccentric butterfly valve drawing

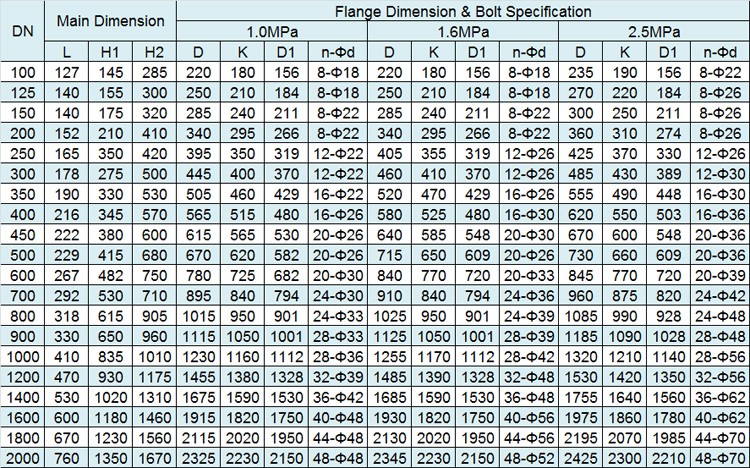

Ductile iron double eccentric butterfly valve dimensions
