Detail Information
Design Standards:
DIN 3202-F5
Flange in accordance to BS EN 1092-2
Series 14 according to EN 558
Feautres:
DIN 3202-F5
Flange in accordance to BS EN 1092-2
Series 14 according to EN 558
Feautres:
- Wedge ductile iron GGG50 encapsulated with EPDM
- Ductile iron body & bonnet – Coated epoxy
- Size from DN50 to DN300
- Non-rising stem design
- Nylon Guide for smooth operation and low torque
- Wedge ductile iron GGG50 encapsulated with EPDM
- Suitable for drinking water & treated sewage
- Suitable for Horizontal or vertical pipelines

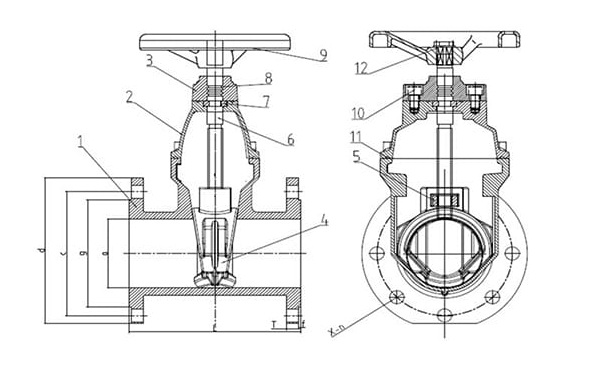

| Model DN | Face to Face L-mm | Hand wheel diameter D-mm |
Flange diameter d-mm | Hole center distance c-mm | Hole number and aperture x-n | The flange thickness (containing water) T-mm | Boss height f-mm | Crown diameter g-mm | Nominal Pressure |
| 50 | 150 | 138 | 165 | 125 | 4-Φ18 | 19 | 3 | 99 | PN16 |
| 65 | 170 | 173 | 185 | 145 | 4-Φ18 | 19 | 3 | 118 | |
| 80 | 180 | 173 | 200 | 160 | 8-Φ18 | 19 | 3 | 132 | |
| 100 | 190 | 200 | 220 | 180 | 8-Φ18 | 19 | 3 | 156 | |
| 125 | 200 | 230 | 250 | 210 | 8-Φ18 | 19 | 3 | 184 | |
| 150 | 210 | 230 | 285 | 240 | 8-Φ23 | 19 | 3 | 211 | |
| 200 | 230 | 270 | 340 | 295 | 12-Φ23 | 20 | 3 | 266 | |
| 250 | 250 | 350 | 395 | 350 | 12-Φ26 | 22 | 3 | 319 | |
| 300 | 270 | 350 | 445 | 400 | 12-Φ26 | 24.5 | 4 | 370 |
