Conventional Safety Relief Valve (PRV), Orifice Area J

Name: Conventional Safety Relief Valve (PRV), Orifice Area J
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Conventional Safety Relief Valve (PRV) Manufacturer Shinjo Supplies Conventional Safety Relief Valve (PRV), Orifice Area J.

Request a quote

Detail Information

A Conventional Safety Relief Valve (PRV) uses a spring to keep the valve closed until the process nears the set pressure. The spring force pushes the valve’s disc against the nozzle seat keeping the valve closed. Process pressure exerts an opposing force on the disc. When the process pressure force on the disc overcomes the opposing spring force, the disc lifts and the valve begins to relieve pressure.

Performance

The allowable tolerance of the set pressure: ≤±3% of the set pressure
Over pressure: ≤±10% of the set pressure
Blowdown: ≤±10% of the set pressure
Tightness: the valve has good seat tightness conforms to API 527

Conventional Safety Relief Valve (PRV) Structure Drawings

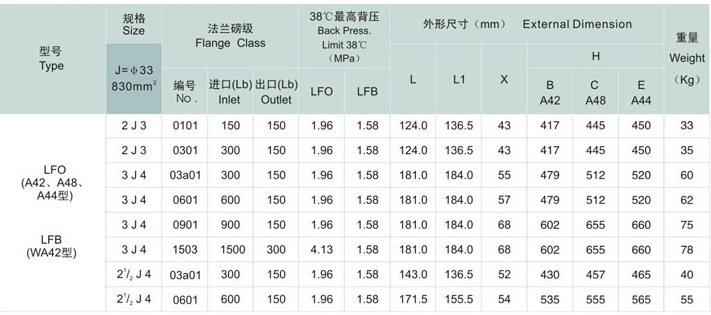

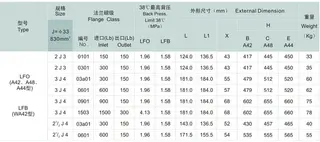

Conventional Safety Relief Valve (PRV), Orifice Area J Size Dimensions

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

low-emission valve packing vs. conventional valve packing

Low-emission packing systems are specifically engineered to minimize microscopic leakage along the valve stem, which is a common source of fugitive emissions in industrial plants.

Compared with conventional packing, low-emission designs achieve better performance through:

Higher material density control to reduce permeation paths

Pre-compressed or die-formed graphite rings for stable sealing stress

Optimized load distribution using live-loading spring systems

Improved surface finish compatibility with stem materials

These design improvements allow the packing to maintain consistent sealing force even under thermal cycling and vibration. As a result, leakage levels can be reduced to extremely low thresholds (often measured in parts per million), supporting compliance with environmental regulations and reducing operational losses.
